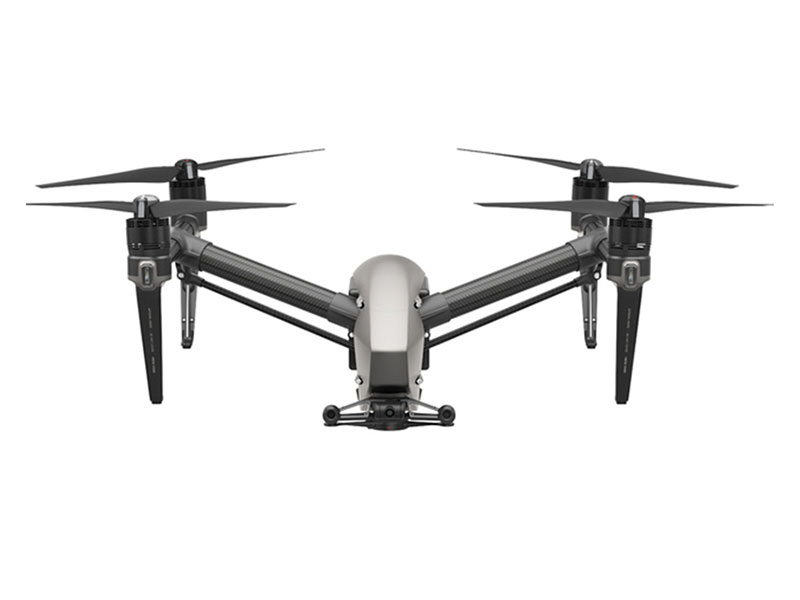

Inspire 2
`

Inspire 2

Item Code: INSPIRE2

Image quality, power and intelligence to meet the needs of professional filmmakers and enterprises around the globe.

Free Shipping

Flight time
23-27 Minutes		 7 km Control Range
Speed
94 KM/H		 Video resolution
6K/5.2K
30 m Sensor Range Live view
1080 P


Visit - Know Your Drone - for a safe and responsible flight


Inspire 2

Find Inspiration in Your Own Imagination with the DJI Inspire 2

Filmmakers and entrepreneurs alike look to the Inspire 2 for its superior power, image and video quality as well as its intelligent control. It’s got an all-new CineCore 2.0 image processing system, DJI FlightAutonomy system and DJI Lightbridge technology within its stylish magnesium aluminum shell.

Get a 1-Year Warranty and FREE Shipping when you get the Inspire 2 at D1 Store. Check out our Best Price Guarantee Packages for better deals, or visit a D1 Store in Melbourne, Sydney, Queensland, and Perth today.

DJI Drone – Inspire 2 Australia at D1 Store DJI Drone – Inspire 2 Australia (Aircraft) at D1 Store

STRUCTURE:

Magnesium aluminum composite shell and transforming design, carbon fiber arms

CONFIGURATION:

Vision sensing, 2-axis FPV camera, range of supported cameras

PROPULSION:

58mph (94kph) max speed, 2kg thrust per rotor, 15in props, maximum 27min flight time (with X4S).

BATTERY:

Dual battery, self-heating, battery redundancy, 98Wh

DJI Drone – Inspire 2 Australia (Image System) at D1 Store

Image Processing:

Image Processing and storage: 5.2K@4.2Gbps RAW video recording, CineCore 2.0, integrated DJI CINESSD.

Video Format:

CinemaDNG and Apple ProRes 5.2K video support, H.265 and H.264 video codec support, 4K video at 100Mbps.

Recorded video can be stored simultaneously on the DJI CINESSD and a Micro-SD card.

File System:

FAT32/exFAT universal file system.

DJI Drone – Inspire 2 Australia (Remote Controller) at D1 Store
  • Signal frequency switching betweeb 2.4 GHz and 5.8 GHz. Lightbridge technology.
  • Controllable range: 4.3mi (7km)*
  • Master-slave mode: Multiple slave controllers supported
  • Ports: Extension port, HDMI port, USB port

*Unobstructed, free of interference, when FCC compliant.

Professional Image Quality

Integrated into the Inspire 2 is the brand new Cinecore 2.0 image processing system, capable of recording 5.2K videos in CinemaDNG * 1, Apple ProRes * 2 and more. CineCore 2.0 is built into the aircraft nose and works with any camera connected through the dedicated gimbal port. (Currently compatible with X4S * 3 and X5S)

DJI Drone – Inspire 2 Australia (CineCore 2.0) at D1 Store

CinemaDNG

5.2K (5280*2972, 16:9) 30fps 12bit, 4.2Gbps
4K (4096*2160, 17:9) 60fps 10bit, 4.0Gbps

Apple ProRes

5.2K (5280*2160, 2.4:1) 30fps (422 HQ)
4K (3840*2160, 16:9) 30fps (4444 XQ, no alpha)

H.265/H.264

Built-in 3D noise reduction, 3DLUT color management technology, advanced sensor correction. H.264/AVC BP/MP/HP Level 5.1: 4K 60fps, 100Mbps; H.265 MP Level 5.1: 4K 30fps, 100Mbps;

Stills

JPEG/DNG/JPEG+DNG 14fps in burst 20.8 MP * 4
DNG 20fps continuous burst 20.8 MP * 5

*1 *2 Additional licenses required *3 X4S does not support DNG RAW or Apple ProRes *4 Photos stored on Micro-SD card *5 Photos restored on DJI CINESSD

Efficient Workflow

The Inspire 2 creative workflow has been completely optimized and is now capable of recording video in CinemaDNG and Apple ProRes, and other common formats for post-production in filmmaking. Also supported are FAT32/exFAT* file systems, which allow fast copying of files direct from the CINESSD without additional software.
*Coming soon.

DJI Drone – Inspire 2 Australia (Efficient Workflow) at D1 Store

Sense and Avoid

Forward and downward vision systems enable the Inspire 2 to detect obstacles up to 30 meters ahead, allowing for protected flight at up to 34mph (54kph) at a controllable attitude angle of 25°. Upward facing infrared sensors scan obstacles 16ft (5m) above, adding protection when flying in enclosed spaces. Obstacles sensing systems are active during normal flight, RTH and all Intelligent Flight Modes.
These sensors are core components of the DJI FlightAutonomy system, which brings the below intelligent features to the Inspire 2:

DJI Drone – Inspire 2 Australia (Sense and Avoid) at D1 Store DJI Drone – Inspire 2 Australia (Spotlight Pro) at D1 Store

Spotlight Pro is a powerful tracking mode that allows even single pilots to capture complex, dramatic images. It uses advanced visual tracking algorithms to lock onto a subject during flight, regardless of the direction that the Inspire 2 flies, creating shots that would once have required a dedicated camera operator. If the gimbal comes close to reaching its rotation limits, the Inspire 2 itself will rotate in the same direction without affecting flight control or the shot being captured to free up gimbal movement.

It has two shooting modes, Quick Mode and Composition Mode.

In Quick Mode, select an object to begin tracking. In Composition Mode, select the subject and the tracking position. When the subject enters the preset tracking position, press the shortcut to begin tracking. The gimbal can be moved during shooting for composition adjustments.

Spotlight Pro is available in all Intelligent Flight Modes including ActiveTrack, TapFly, Waypoint and Point of Interest.

Intelligent Flight Modes

In addition to Spotlight Pro, a range of other intelligent flight and shooting modes are available. Obstacle avoidance is optimized when using Point of Interest* and Waypoint* modes, making complex shots simple and repeatable. Also available are QuickSpin, TapFly and ActiveTrack, to simplify challenging shots.
*Coming Soon.

DJI Drone – Inspire 2 Australia (Intelligent Flight Modes) at D1 Store

TapFly

The 2-axis onboard FPV camera separates the flight view from the main camera view, effectively giving the Inspire 2 a dedicated TapFly camera. Tap a point onscreen in the FPV view to set a flight route and the Inspire 2 will automatically fly along that route, leaving the pilot to focus on gimbal movement.

DJI Drone – Inspire 2 Australia (TapFly) at D1 Store

ActiveTrack

The ActiveTrack Mode allows the Inspire 2 to recognize a range of objects, from people to bikes to cars to boats. Tracking profiles that can be adjusted based on the subject being tracked means greater tracking precision.

DJI Drone – Inspire 2 Australia (Smart Return to Home) at D1 Store

Forward and downward vision systems allow the Inspire 2 to create a real-time map of its flight route as its flies. If the video transmission system signal is lost and Smart Return Home is enabled, it is able to fly home along its original route, and change to a straight line when it regains a signal. As it returns, it will use the primary camera to identify obstacles as far as 200m in front, allowing it to plan a safe route home. It is also able to reconnect more quickly after losing connection.

Optimized Transmission and Control System

The latest update to DJI Lightbridge technology has an effective transmission distance of up to 4.3mi (7km)* and is capable of delivering both 1080p/720p video as well as the FPV view to pilot and camera operator. Users can also switch between 2.4GHz and 5.8GHz** control frequencies to cut through noise for greater signal stability.
*Unobstructed, free of interference, FCC compliant. **5.8GHz transmission is not available in some regions due to local regulations.

DJI Drone – Inspire 2 Australia (Powerful Flight Performance) at D1 Store

A new propulsion system optimized for power creates a new level of flight performance. The Inspire 2 flies at up to 58mph (94kph) descends at 9m/s and climbs at 6m/s. It can accelerate from 0 to 50mph (80kph) in just 5 seconds and flies at a max attitude angle of 40°

The two controller sticks are tuned for more sensitivity, making delicate maneuvers easier.

More power also allows the Inspire 2 to fly in more extreme conditions, including over 2500-5000m above sea levels (using optional dedicated propellers), and in temperatures as low as -4°F (-20°C) using self-heating Intelligent Flight Batteries.

Increased Reliability

Reliability has been further enhanced through dual redundancy of key modules such as the IMU and barometer. The intelligent flight control system monitors the redundancy system, giving it accurate flight data.

The new obstacle sensing system helps the Inspire 2 sense and avoid obstacles, minimizing the risk of collision.

Dual batteries mean that if a problem occurs on one battery the other is able to continue flight long enough for a safe landing. At the same time, the Inspire 2 propulsion system is driven a PWM signal with serial port signal redundancy so that if PWM signals are lost, transmission will continue through the serial port.

This propulsion system has been tested for thousands of hours to ensure reliability, when combined with key sensors and a dual-battery design, overall flight reliability is significantly enhanced.

DJI Drone – Inspire 2 Australia (Powerful Flight Performance) at D1 Store

Optional Accessories to Enhance Performance

A series of powerful DJI accessories help improve work efficiency and give filmmakers more creative opportunities.

DJI Drone – Inspire 2 Australia (Optional Accessories) at D1 Store

DJI License Keys allow CineCore 2.0 to record in CinemaDNG and Apple ProRes. These are available for purchase separately and allow the Zenmuse X5S camera to produce the exact file type needed for individual post-production requirements.

*Maximum video resolution is subject to DJI CINESSD capacity.Refer to the Licensing page for details.

DJI Drone – Inspire 2 Australia (CrystalSky) at D1 Store DJI Drone – Inspire 2 Australia (Battery Charging Station) at D1 Store

An 800W Battery Charging Station charges up to eight Inspire 2 batteries. With additional space for storing four Intelligent Flight Batteries and a standard battery charger. The Battery Charging Station is also equipped with two USB charging ports.
*Coming Soon

4G-LTE Network Connection

The Inspire 2 supports control over 4G. USB dongle and SDK development required. This high bandwidth allows the Inspire 2 to transmit high quality videos to a network server or can be used for ultra-long distance control. It also cuts video transmission latency to 500ms.

Ground Filming

An all-new handheld camera mount3 is compatible with the Zenmuse X4S and the Zenmuse X5S, bringing these cameras down to the ground for more flexible filmmaking.
*Coming soon

Remote Controller GPS Accessory

A GPS Accessory for the Remote Controller improves the accuracy of the remote controller’s positioning. Used with the Inspire 2’s Dynamic Home point function which constantly updates the latest location of the remote controller as its Home point, it allows accurate Return to Home when moving around an environment.
*Coming Soon

*Accessories are not covered by Warranty

Specifications

Aircraft

Model T650A
Weight 7.58 lbs (3440 g, including propellers and two batteries, without gimbal and camera)
Max Takeoff Weight 9.37lbs (4250 g)
GPS Hovering Accuracy Vertical: ±1.64 feet (0.5 m) or ±0.33 feet (0.1 m, Downward Vision System enabled)
Horizontal: ±4.92 feet (1.5 m) or ±0.98 feet (0.3 m, Downward Vision System enabled)
Max Angular Velocity Pitch: 300°/s
Yaw: 150°/s
Max Tilt Angle P-mode: 35° (Forward Vision System enabled: 25°)
A-mode: 35°
S-mode: 40°
Max Ascent Speed P-mode/A-mode: 16.4 ft/s (5 m/s)
S-mode: 19.7 ft/s (6 m/s)
Max Descent Speed Vertical: 13.1 ft/s (4 m/s)
Tilt: 13.1-29.5 ft/s (4-9 m/s)
Max Takeoff Sea Level 1.55 mi (2500 m)
3.1 mi (5000 m with specially-designed propeller)
Max Wind Speed Resistance 10 m/s
Max Flight Time Approx. 27min (with Zenmuse X4S)
Approx. 23min (with Zenmuse X7)
(Hovering at sea level with no wind.)
Motor Model DJI 3512
Propeller Model DJI 1550T
Indoor Hovering Enabled by default
Operating Temperature -4° to 104° F (-20° to 40° C)
Diagonal Distance(propeller excluded) 23.8 inch (605 mm, Landing Mode)
Max Speed 58 mph or 94 kph(Sport mode)

Remote Controller

Model GL6D10A
Operating Frequency 2.400-2.483 GHz
5.725-5.850 GHz
Max Transmitting Distance(unobstructed, free of interference) 2.4 GHz:
FCC: 4.3 miles (7 km);
CE: 2.2 miles (3.5 km);
SRRC: 2.5 miles (4 km);
MIC: 2.5 miles (4 km);
5.8 GHz:
FCC: 4.3 miles (7 km);
CE: 1.2 miles (2 km);
SRRC: 3.1 miles (5 km);
MIC: - ;
EIRP 2.4 GHz:
FCC: 26 dBm;
CE: 17 dBm;
SRRC: 20 dBm;
MIC: 17dBm;
5.8 GHz:
FCC: 28 dBm;
CE:14 dBm;
SRRC: 20 dBm;
MIC: - ;
Video Output Ports USB, HDMI
Power Supply Built-in battery
Charging DJI charger
Dual User Capability Host-and-Slave connection
Mobile Device Holder Tablet or Smart Phone
Max Mobile Device Width 170 mm
Output Power 9 W (Without supplying power to smart device)
Operating Temperature -4° to 104° F (-20° to 40° C)
Storage Temperature Less than 3 months: -4° to 113° F (-20° to 45° C)
More than 3 months: 72° to 82° F (22° to 28° C)
Charging Temperature 32° to 104° F (0° to 40° C)
Battery 6000mAh 2S LiPo
USB Supply Power iOS: 1 A @ 5.2 V (Max); Android: 1.5 A @ 5.2 V (Max)

Battery (Standard)

Name Intelligent Flight Battery
Model TB50
Capacity 4280 mAh
Voltage 22.8 V
Battery Type LiPo 6S
Energy 97.58 Wh
Net Weight 515 g
Charging Temperature 41° to 104° F (5° to 40° C)
Operating Temperature -4° to 104° F (-20° to 40° C)
Max Charging Power 180 W
Storage Temperature Less than 3 months: -4° to 113° F (-20° to 45° C)
More than 3 months: 72° to 82° F (22° to 28° C)

Downward Vision System

Velocity Range <32.8 ft/s (10 m/s) at height of 6.56 feet (2 m)
Altitude Range <32.8 feet (10 m)
Operating Range <32.8 feet (10 m)
Operating Environment Surfaces with clear patterns and adequate lighting (> 15 lux)
Ultrasonic Sensor Operating Range 0.33-16.4 feet (10-500 cm)
Ultrasonic Sensor Operating Environment Non-absorbing material, rigid surface (thick indoor carpeting will reduce performance)

Upward Infrared Sensor

Obstacle Sensing Range 0-16.4 feet (0-5 m)
FOV ±5°
Operating Environment Large-size non-reflective obstacles

Gimbal

Model ZENMUSE X7(optional)
ZENMUSE X5S(optional)
ZENMUSE X4S(optional)
Angular Vibration Range ±0.01°
Controllable Range Pitch: -130° to+40°
Roll: ±20°
Pan: ±320°
Max Controllable Speed Pitch: 180°/s
Roll: 180°/s
Pan: 270°/s
Interface Type Detachable
Mechanical Range Pitch: -140° to+50°
Roll: -50° to+90°
Pan: ±330°

Charger

Model IN2C180
Voltage 26.1 V
Rated Power 180 W

Charging Hub

Model IN2CH
Input Voltage 26.1 V
Input Current 6.9 A

Forward Vision System

Obstacle Sensing Range 2.3-98.4 feet (0.7-30 m)
FOV Horizontal: 60°; Vertical: 54°
Operating Environment Surfaces with clear patterns and adequate lighting (> 15 lux)

APP

Name DJI GO 4


AIRCRAFT

1. What is the Inspire 2’s maximum flight speed?

Max Ascent Speed 6m/s (Sport Mode);Max Descent Speed: Vertical, 13.1 ft/s (4 m/s); Tilt, 13.1-29.5 ft/s (4-9 m/s)Default tilt is 13.1 ft/s (4 m/s), can be set in-app. Max Speed 26m/s, 58 mph (94 kph, flight forward in S-mode).

2. What is the Inspire 2’s maximum flight time?

Up to 25 minutes with Zenmuse X5S. Up to 27 minutes with Zenmuse X4S.

3. What cameras and gimbals is the Inspire 2 compatible with?

The Inspire 2 currently supports the Zenmuse X4S, Zenmuse X5S and Zenmuse X7.

4. Does the Inspire 2 come with camera and gimbal included?

No. Please purchase your gimbal and camera separately.

5. Does the Inspire 2 have an Obstacle Avoidance system?

Yes. Its Forward Vision System is capable of detecting obstacles up to 30 meters ahead, while the upward facing infrared sensors can sense obstacles within a 5 meter range.

6. Can I use the Inspire 1 remote controller with the Inspire 2?

No. You will need to use an Inspire 2 remote with your Inspire 2 aircraft.

7. Does the Inspire 2 support Master and Slave remote controllers?

Yes. The maximum effective distance between the Master and Slave controllers is 100 meters, and both controllers will receive the same HD live view.

8. Does the Inspire 2 support older Zenmuse camera gimbals?

Currently, only the new Zenmuse X4S and Zenmuse X5S are supported.

9. Does the Inspire 2 come with a Micro SD card ?

Yes. Included in the box is a 16GB Micro SD card. It supports SD cards up to 128GB.

10. Which Micro SD cards are supported ?

Currently supported Micro SD cards are:
Sandisk Extreme 32GB UHS-3 V30 MicroSDHC;
Sandisk Extreme 64GB UHS-3 V30 MicroSDXC;
Panasonic 32GB UHS-3 MicroSDHC;
Panasonic 64GB UHS-3 MicroSDXC;
Samsung PRO 32GB UHS-1 MicroSDHC;
Samsung PRO 64GB UHS-3 MicroSDXC;
Samsung PRO 128GB UHS-3 MicroSDXC;
*It's not recommend to use the Patriot EPPRO 64GB MicroSDXC UHS-3.

11.What are the dimensions of the Inspire 2?

L:42.7cm x H:31.7cm x W:42.5cm without propellers (landing mode).

12. What type of motors and propellers does the Inspire 2 use?

The Inspire 2 has 3512 motors and 1550T propellers.

13. Does the Inspire 2 come with Highland propellers?

No, please purchase the Highland propellers separately.

14.Has the Inspire 2’s propulsion system been improved over the Inspire 1?

Yes. The Inspire 2 uses 3512 motors and 1550T propellers. The max thrust for each rotor reaches up to 2kg. Thousands of hours have been spent on testing to ensure top safety and reliability.

15.Can I carry the Inspire 2 Intelligent Flight Battery onto a commercial airplane?

The Inspire 2 Intelligent Flight Battery has a capacity 97.5Wh. Most airlines allow carrying batteries below 100 Wh in carry-on luggage. However, as regulations may vary across airlines and regions, please contact your airline or the regulatory body of your destination.

REMOTE CONTROLLER

1. What’s the highlight features of the Inspire 2’s remote controller and video transmission system?

The new dual-band Lightbridge HD video transmission system has a maximum transmission distance of 7 km*. The video feed from the FPV camera and main camera (1080p or 720p) can be viewed simultaneously through the Picture in View feature. The dual-band system consists of 2.4GHz ISM and 5.8GHz ISM**, giving the Inspire 2 stronger resistance against interference. *Unobscured, free of interference, FCC compliant. **In accordance with local law and regulations, 5.8GHz is not available in some countries.

2. How long does it take to charge a remote controller? How long does it last on a full charge?

The remote controller is equipped with a 6,000mAh LiPo 2S battery. Fully charging the Inspire 2 remote controller takes approximately 3 hours. It can be used for approximately 4 hours after being fully charged.

3. What is the largest tablet that will fit in the remote controller’s mobile device mount?

The mount can support an iPad Air or other similar-sized tablet. Tablets should be no more than 170mm tall.

4. What kind of working mode does the remote controller support?

Open the DJI GO 4 app, click the remote controller icon and enter to Settings. You can choose MODE1, MODE2, MODE3, Custom and more under Stick Mode.

5. Does the Inspire 2 remote controller come with a monitor?

No. The remote controller has a mobile device holder for smartphones and tablets. You can also buy the DJI CrystalSky monitor.

6. Is there any specific conditions necessary for the Inspire 2 to reach a 7km video transmission range?

The distance here refers to environments free of obstructions and interference, under FCC compliant specifications.

7. What is the maximum control distance between Master remote controller and Slave remote controller?

The Master and Slave remote controllers can maintain a connection at distances up to 100 meters.

8. Does the remote controller have a training port?

There is no training port on the Inspire 2 remote controller.

9. What is the latency of the Inspire 2’s video transmission system?

Below 220ms.

BATTERY

1. How long does it take fully charge the batteries? Do I get a standard Battery Charger together with the aircraft?

You will get a 180W Battery Charger and a Battery Charging Hub in the box with your Inspire 2. When connecting the standard Battery Charger to the Battery Charging Hub, it takes about 90 minutes to charge 2 batteries and 180 minutes to charge 4 batteries.

2. Can I use batteries with different charge levels?

The Inspire 2 can take off if the power discrepancy of the two batteries is within 13%. If it is unable to take off, the DJI GO 4 app will inform you that “the power discrepancy in the two batteries is too large”.

3. What will happen if an error occurs in one battery?

The Inspire 2 continuously checks battery status and will notify you through the DJI GO 4 app if a battery malfunctions. In this case, please land the aircraft immediately.

4. Why do I need to pair the two batteries?

By charging and discharging a pair of batteries together you will maximize flight time and battery life.

5. How can I pair up two batteries?

Please match batteries on the battery interface of DJI GO 4 app.

6. How do I know that the batteries are correctly mounted?

You will hear the Exit button click to confirm successful mounting of each battery. Other signs is that the button will have less give when you tap it, and that the batteries will not detach when pulled. The DJI GO 4 app also will not inform you of errors and show a full status for each battery when properly mounted.

7.What should I do with the batteries if I am not going to use them for a long time? What’s the maximum duration that I can store them

It is recommended that you keep the Intelligent Flight Batteries charged to 50% when storing them.

If storing for a long period of time, we also recommend that you fully discharge them every 3 months.

CAMERAS

1. Can I use Adobe CinemaDNG and Apple ProRes after purchasing the Zenmuse X5S?

No, you will need to purchase a DJI License Key to enable these formats.

2. Does the Zenmsue X4S support the Adobe CinemaDNG and Apple ProRes?

No.

3. What is the resolution of Inspire 2’s forward-facing camera?

640 x 480px.

4. Is the pitch of the FPV camera controllable?

Yes. Press and hold the C2 button, and at the same time use the left dial to control the pitch. The roll axis is not controllable.

OTHER

1. Is a SSD (Solid State Drive) included in the box with the Inspire 2?

No. You need to purchase the DJI CINESSD and DJI CINESSD Station card reader separately.

2. What capacities is the DJI CINESSD available in?

120GB , 240GB and 480GB.

3. Does Inspire 2 have any redundant components?

Yes. Many key parts of the Inspire 2 are designed with redundancy, including IMU sensors and barometers. The Inspire 2 flight controller monitors and analyses the redundancy data in real time, to ensure that flight data is correct.

4. Does the Inspire 2 have the Return to Home (RTH) function?

Yes. During RTH, the Inspire 2 is able to collect information about the environment and automatically plan the best path back home. Being able to detect obstacles 200m away, it also restores communication faster with the remote controller during RTH after losing signal, so as to make RTH safe and successful.

5. What is the minimum altitude required for initiating ActiveTrack?

To use ActiveTrack, you should keep your Inspire 2 at least 2m above the ground and set the aircraft to P-Mode.


CompanyAbout UsCareersShipping and Refund PolicyAfter SalesPrivacy PolicyTerms of Sale
PurchasingDJI DronesDJI Cameras & HandheldsDJI Enterprise & AgricultureDJI EducationPrice Match / Best Quote Match (Enterprise)
ServicesD1 LabsD1 SME SolutionsTrade InD1 Best Quote Guarantee
SupportSupport HomeCare Refresh After 48 HoursCare Refresh Activation GuideDrone Safety
know your drone safety advocate
© 2024 D1 STORE Pty Ltd. All Rights Reserved.
