Name: DJI Video Receiver
Brand: D1 Labs

DJI Video Receiver

Item Code: DJIRS3PROP9

Ready to Receive

Key Features:

• 6KM Range
• SDI + HDMI Video Output
• Pairs with DJI Video Transmitter

Your Purchase Includes:
Free Shipping Within Australia
Local Lifetime Support

AUD $2,119.00

Overview

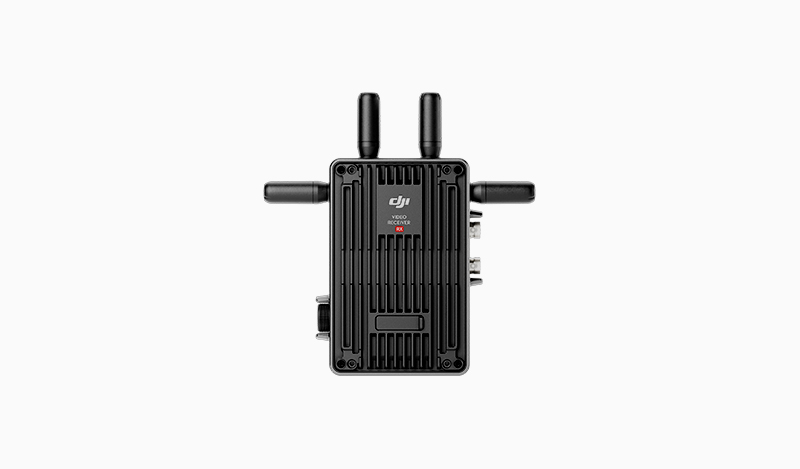

The perfect partner for the DJI Video Transmitter, the DJI Video Receiver is a compact video solution that can be adapted to your needs. Suitable for broadcast and film-set applications, the DJI is ultra-versatile and can be used to receive full HD video feeds from up to 6 KM away.

Powered by industry-leading DJI O3 Pro technology, the DJI Video Receiver intelligently hot-swaps between frequency bands to ensure clean, interference-free video feeds. The best part? You can pair multiple receivers with a single DJI Video Transmitter for seamless video transmission to multiple output destinations.

Watch the Reveal

Product Details

Ready to Receive

Powered by DJI O3 Pro transmission technology, the DJI Video Receiver can detect and receive HD video feeds from far, far away when paired with the DJI Video Transmitter.

Optimised to deliver professional performance and eliminate stress on set, the DJI Video Receiver supports 1080p/60fps video with a max bitrate of 50Mbps in addition to live audio monitoring at 16-bit 48 kHz.

Hand in Hand

The DJI Video Receiver pairs exclusively with the DJI Video Transmitter to create a powerful transmission bond that utilises 2.4 GHz, 5.8 GHz and DFS frequency bands. HD video is transmitted at ultra-low latency to ensure that your team sees everything in real-time

The DJI Video Receiver also supports multiple outputs via both SDI and HDMI - ideal for larger scale video village set ups.

Mega Metadata

Built for professional use, the DJI Video Receiver allows operators to receive more than just camera footage. Critical metadata including timecode, camera settings, lens information and more are all relayed efficiently between transmitter and receiver.

Connect the receiver to your video monitor for comprehensive video data that’s essential for directors and cinematographers.

Easy Integration

Featuring a compact design, the DJI Video Receiver is built to be mounted easily, and can be mounted practically anywhere with its 1/4" thread.

Power is made easy too with the DJI Video Receiver. It can be powered via the DJI WB37 Intelligent Battery or with NP-F batteries you already own.

DJI Transmission

Check out the DJI Transmission Standard Combo

Get the DJI Video Receiver alongside its best friend - the DJI Video Transmitter - with the DJI Transmission Standard Combo. This value-packed combo includes the essentials for experiencing the professional broadcast power of the DJI Transmission System.

Includes: DJI Video Transmitter, DJI Video Receiver, Safety Case, Essential Cables + More

Shop Now >

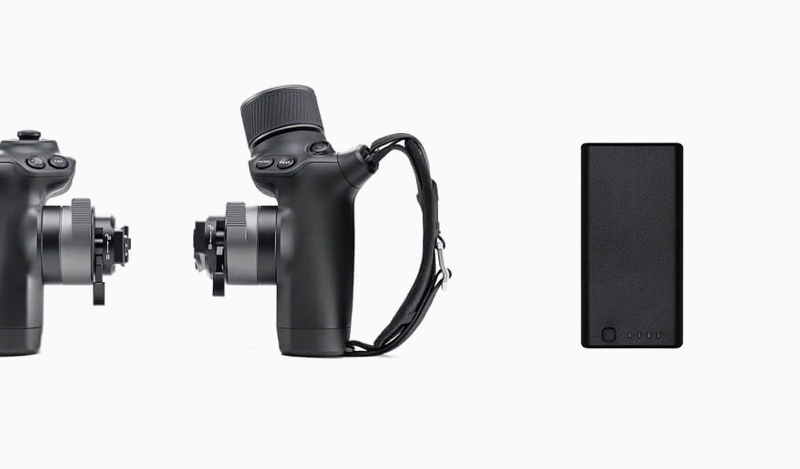

Explore DJI Tranmission accessories

Shop Now >

Shop with Confidence

Australia's First & Only Authorised DJI Retail Store

DJI Video Receiver

Weight

Approx. 350 g (excluding antennas)

Dimensions

127×87×26 mm (L×W×H, excluding antennas)

Operating Frequency

"Frequency Band
Non-DFS Frequency Band:
2.4000-2.4835 GHz
5.150-5.250 GHz
5.725-5.850 GHz

DFS Frequency Band:
5.250-5.350 GHz
5.470-5.725 GHz
5.725-5.850 GHz
^{In some countries and regions, the 5.1/5.2/5.8 GHz frequencies are prohibited, or the 5.1/5.2 GHz frequencies are only allowed for indoor use. Check local laws and regulations for more information. 5.600-5.650 GHz is not used.}"

Transmitter Power (EIRP)

2.4000-2.4835 GHz:
<33 dBm (FCC)
<20 dBm (SRRC/CE/MIC)

5.725-5.850 GHz:
<33 dBm (FCC)
<14 dBm (CE)
<23 dBm (SRRC)s

Max Bandwidth

40 MHz

Max Bitrate

40 Mbps

Power Consumption

9 W

Power Supply Voltage

6 to 18 V

Output Voltage

Power output port: 6 to 18 V

Operating Time

3 hours 50 minutes
^{Tested in a room temperature of 25° C (77° F) when powered by a fully charged WB37 Intelligent Battery and used with the DJI Video Transmitter.}

Output Video Format

With the DJI Video Transmitter:
1080p: 23.98/24/25/29.97/30/50/59.94/60fps
720p: 50/59.94/60fps

With Ronin 4D:
1080p: 24/25/30/48/50/60 fps

Input Audio Format

SDI embedded, HDMI embedded

Output Audio Format

PCM

Video Transmission System

O3 Pro

Video Transmission Latency

70 ms
^{Measured when shooting 1080p/60fps video.}

Video Coding Format

H.264

Max Transmission Distance

6 km (FCC)
4 km (CE/SRRC/MIC)
^{Measured in open environments without obstructions or interference.}

Operating Temperature

-10° to 45° C (14° to 113° F)

DJI Video Receiver

Overview

In the box

Specifications

Overview

Watch the Reveal

Product Details

Ready to Receive

Hand in Hand

Mega Metadata

Easy Integration

Check out the DJI Transmission Standard Combo

Explore DJI Tranmission accessories

Shop with Confidence

Australia's First & Only Authorised DJI Retail Store

Video Receiver

x 1

WB37 Battery Adapter (RX)

x 1

NP-F Battery Adapter (RX)

x 1

Ronin Video Transmission Antenna

x 2

USB-C Cable

x 1

SDI Cable

x 1

DC to P-TAP Power Cable

x 1

Installation Kit

x 1
