DJI Transmission (Standard Combo)
`

DJI Transmission (Standard Combo)

Item Code: DJIRS3PROP8

Transmit From Far Away

Standard Combo Includes:
• DJI Video Transmitter
• DJI Video Receiver
• Safety Case + Accessories

Your Purchase Includes:
Free Shipping Within Australia
Local Lifetime Support

AUD $3,149.00

Buy Now

Overview

The product of years of industry knowledge, research and development, the innovative new DJI Transmission video transmission system is designed to bring new levels of creative autonomy to film and broadcast professions.

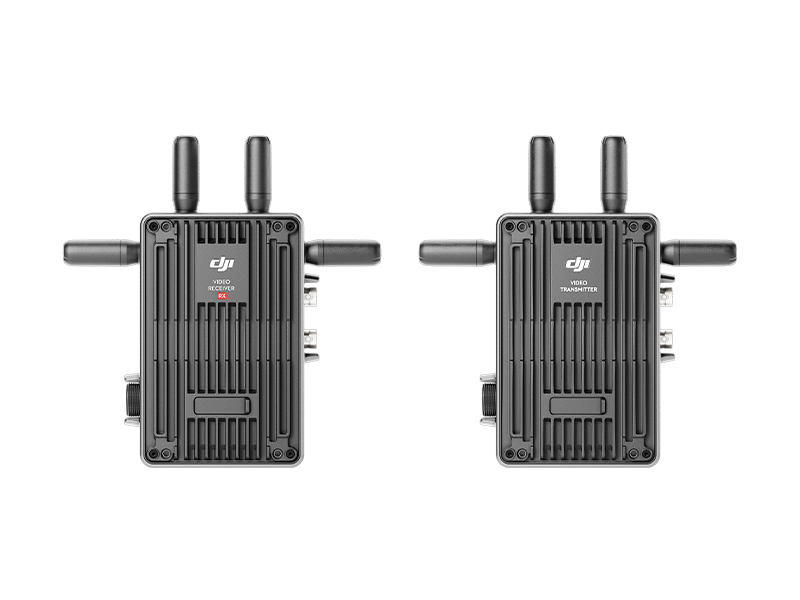

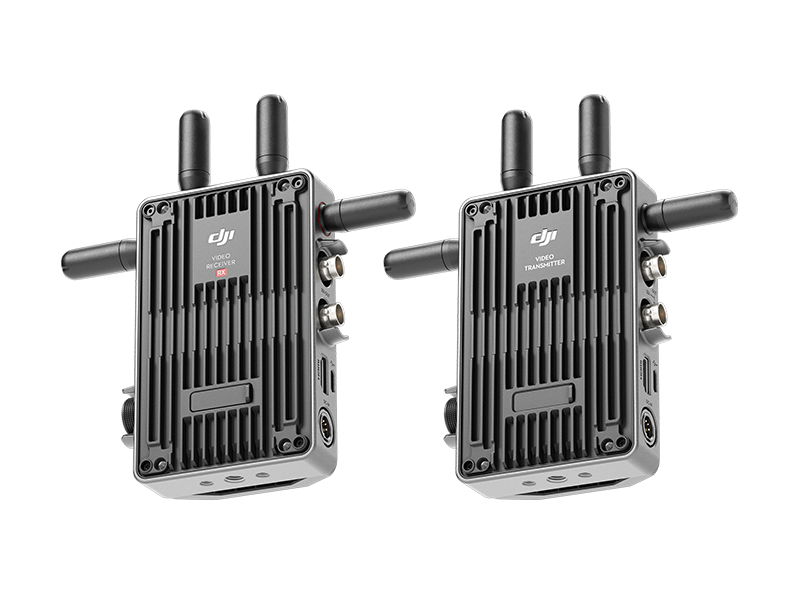

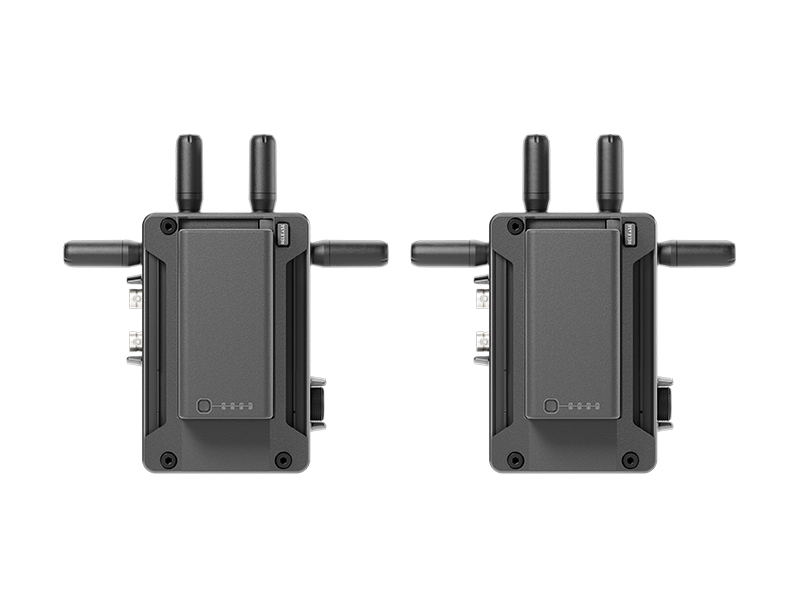

The DJI Transmission Standard Combo is made up of two innovative components; the DJI Video Transmitter and the DJI Video Receiver. Combined, these two components provide an unparalleled video transmission solution that can be applied to a wide variety of professional filming and broadcasting scenarios.

What devices are compatible with DJI Transmission? Will it work with my camera?

DJI Transmission is compatible with a virtually endless number of cameras and devices. With support for both SDI and full-size HDMI inputs, the DJI Video Transmitter can be mounted and used with practically all modern DSLRs, mirrorless and cinema cameras. Compatibility ranges from smaller solutions like the BlackMagic Pocket Cinema series all the way to large-scale cinema solutions including the ARRI Alexa and DJI Inspire 3.

What's new?

▪ Strong, secure video transmission at 1080p/60fps

▪ Incredible maximum video transmission distance of up to 6 KM

▪ Extensive support for DJI Pro accessories including DJI Ronin 2, RS3 Pro and so many more!

▪ Light and compact for easy mounting onto professional equipment including sliders, jibs, car mounts and DJI Ronin gimbals

Watch the Reveal

Features

  • DJI Transmission - Next-Level Video Transmission | Best Price Guarantee at D1 Store

Next-Level Video Transmission


Experience high-quality, low-latency video transmission like never before with the new DJI Transmission video transmission system. Powered by DJI’s groundbreaking O3 Pro transmission technology, DJI Transmission delivers 1080p/60fps video at a stellar transmission range of up to 6KM!

Reliable Transmission, Everytime


O3 Pro features automatic frequency hopping, allowing the transmitter to jump between 2.4 GHz, 5.8 GHz and DFS channels for reliable transmission regardless of environment.

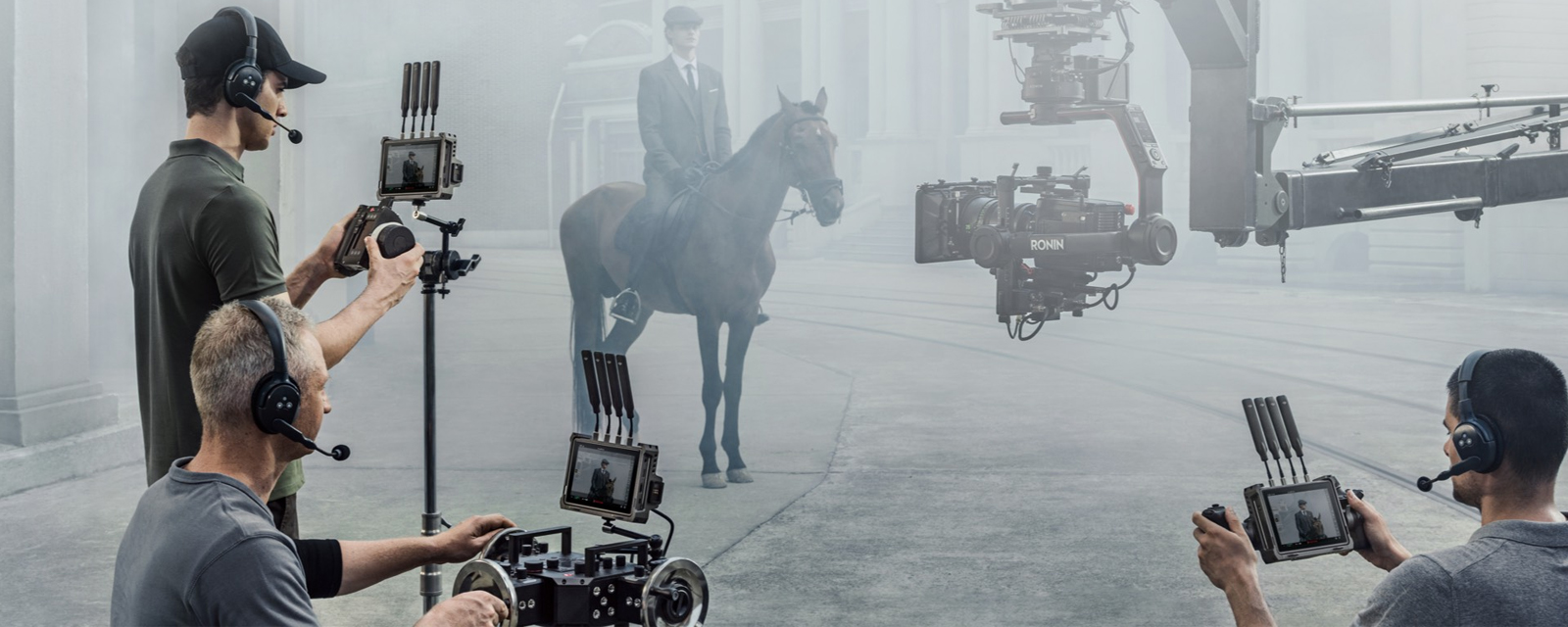

Plus with the power of DJI O3 Pro, a single DJI Video Transmitter can be used with multiple receivers simultaneously, opening up new possibilities on large film sets.
  • DJI Transmission - Reliable Transmission, Everytime | Best Price Guarantee at D1 Store
  • DJI Transmission - Industry-Leading Remote Monitor | Best Price Guarantee at D1 Store

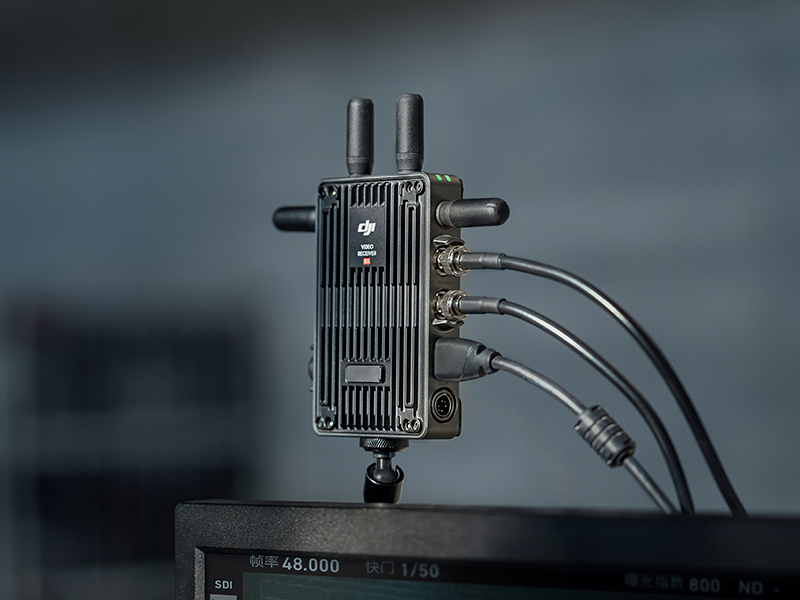

Industry-Leading Receiver

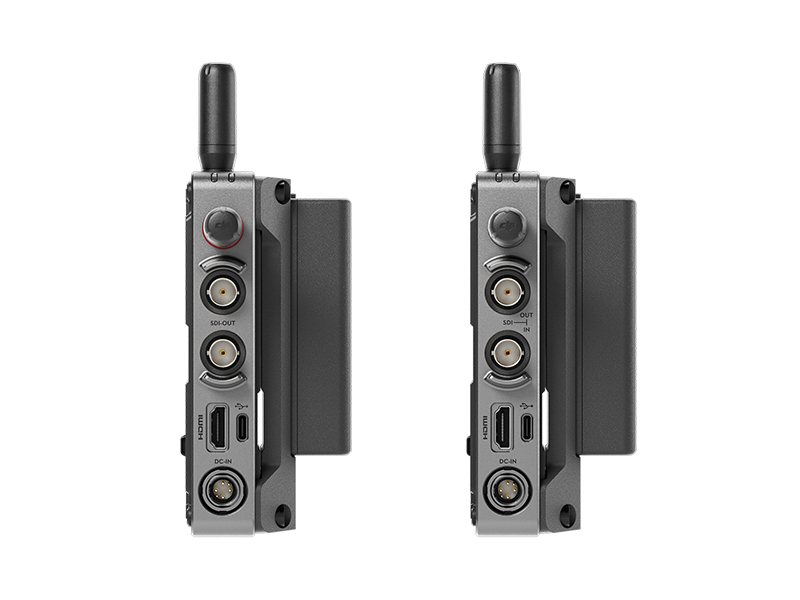

The Standard Combo sports the compact DJI Video Receiver that is ultra-versatile and can be adapted to your needs. Featuring native dual SDI and HDMI video outputs, the DJI Video Receiver will feel right at home in your video village.

  • DJI RS3 - Intelligent Shooting | Best Price Guarantee at D1 Store

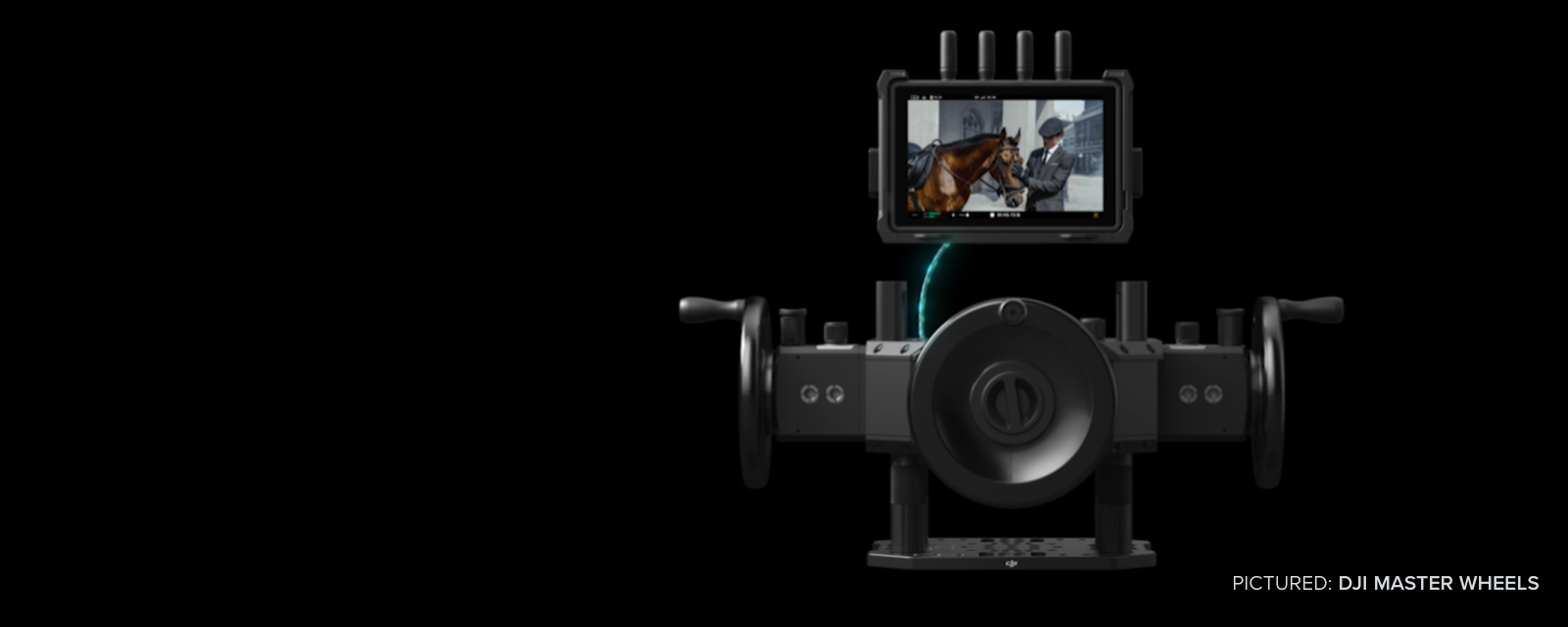

Part of the Family


As the latest member of the DJI Ronin family, DJI Transmission integrates seamlessly with professional creative tools including the DJI Ronin 2, DJI RS3, DJI Master Wheels and more for a seamless filming experience.

Pair DJI Transmission with a Ronin series gimbal for newfound stability and creative control and use DJI Master Wheels or Ronin 4D Hand Grips for precise movement and setting controls.

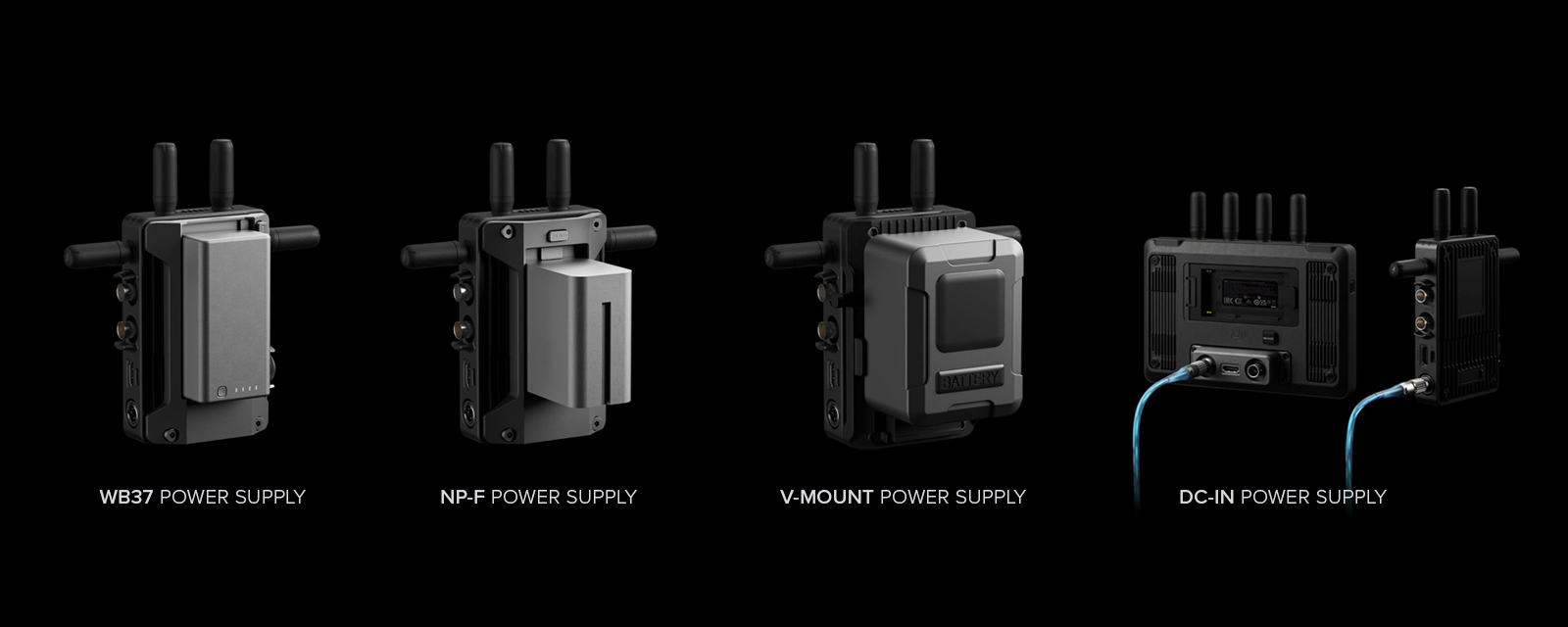

Power Your Creativity


With support for multiple power solutions, both the transmitter and receiver can be powered your way via independent power sources or your pre-existing solutions.

Both components natively supports DJI WB37 batteries and can be adapted to support NP-F batteries, larger V-mount batteries and direct DC-IN.

  • DJI Transmission - Power Your Creativity | Best Price Guarantee at D1 Store
  • DJI Ronin 4D | Best Price Guarantee at D1 Store
  • DJI Ronin 4D
  • From $10,149

Check out the DJI Ronin 4D


Experience the power of DJI Transmission natively with the DJI Ronin 4D, a game-changing new all-in-one cinema solution. Combining DJI’s popular Ronin stabilisation technology with a full-frame Zenmuse sensor, LiDAR autofocus, wireless video transmission and so much more, Ronin 4D does it all!

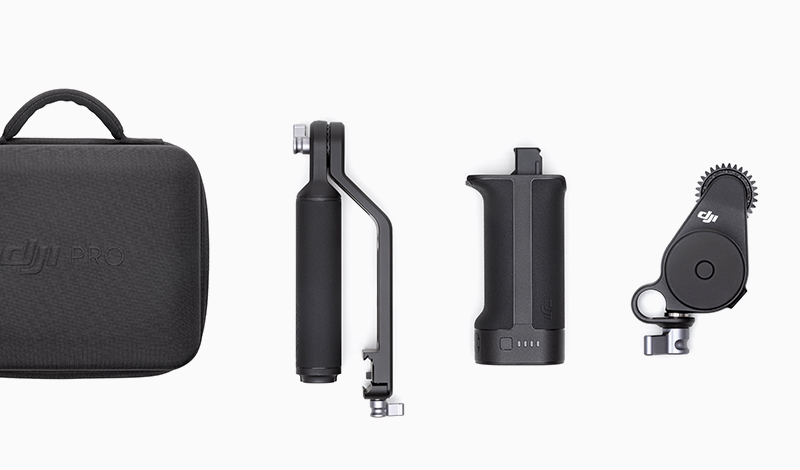

Explore DJI RS3 Pro
Accessories

Shop Now >

Explore Ronin 4D Accessories

Shop Now >

Shop with Confidence.

Australia's First & Only Authorised DJI Retail Store

Our team are dedicated to providing you with the best service and price on all your DJI products from Consumer to Enterprise. With our conveniently located stores around Australia, our product specialists will guide you through which drone will be perfect for you and provide all the tips and tricks needed for a safe and enjoyable flight. Take advantage of our additional services including Rental, Trade-In, New Pilot Experience and Repairs.

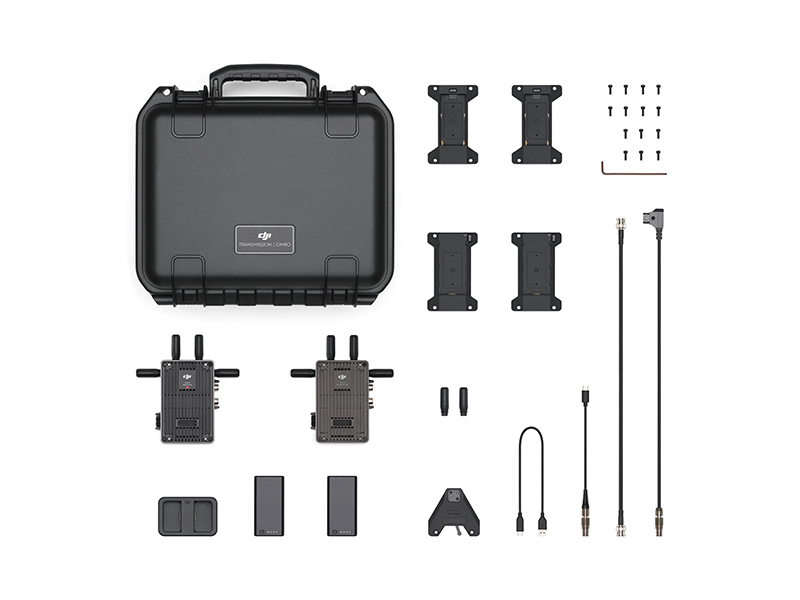

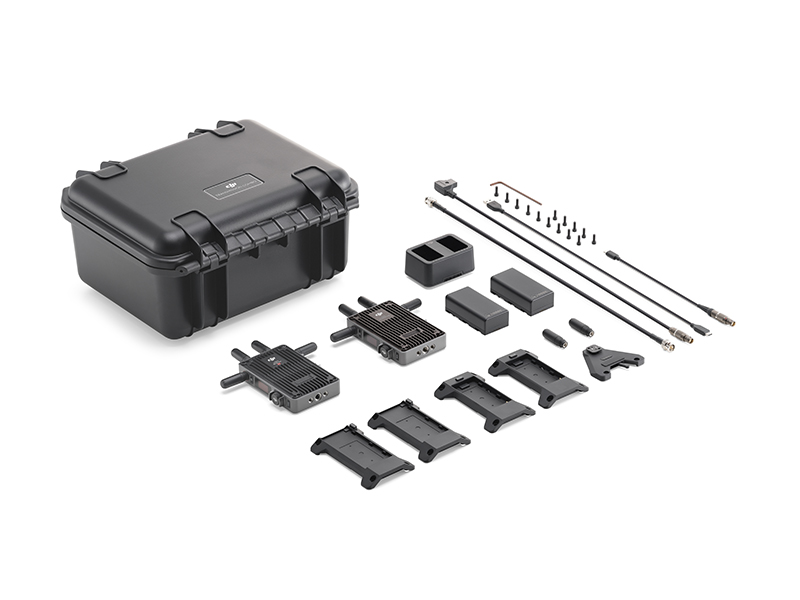

Product Grid
DJI Video Transmitter

DJI Video Transmitter

x 1

DJI Video Receiver

DJI Video Receiver

x 1

WB37 Intelligent Battery

WB37 Intelligent Battery

x 2

WB37 Battery Charging Hub (USB-C)

WB37 Battery Charging Hub (USB-C)

x 1

WB37 Battery Adapter

WB37 Battery Adapter

x 2

RS Gimbal Mounting Plate

RS Gimbal Mounting Plate

x 1

NP-F Battery Adapter (TX)

NP-F Battery Adapter (TX)

x 2

DJI Transmission USB-C Power Cable

DJI Transmission USB-C Power Cable

x 1

DC to P-TAP Power Cable

DC to P-TAP Power Cable

x 1

SDI Cable

SDI Cable

x 1

USB-C Cable

USB-C Cable

x 1

Installation Toolkit

Installation Toolkit

x 1

Protector Case

Protector Case

x 1

Ronin Video Transmission Antenna

Ronin Video Transmission Antenna

x 2

DJI Transmission
Weight Video Transmitter: Approx 350 g (excluding antennas)
Video Receiver: Approx 350 g (excluding antennas)
Dimensions
 Video Transmitter: 127×87×26 mm (L×W×H, excluding antennas)
Video Receiver: 127×87×26 mm (excluding antennas)
Operating Frequency Non DFS Frequency Band:
2.400-2.484 GHz
5.150-5.250 GHz
5.725-5.850 GHz

DFS Frequency Band:
5.250-5.350 GHz
5.470-5.600 GHz
5.650-5.725 GHz
Transmitter Power (EIRP) 2.400-2.484 GHz:
<33 dBm (FCC)
<20 dBm (SRRC/CE/MIC)

5.150-5.250 GHz:
<23 dBm (FCC/SRRC/MIC)

5.250-5.350 GHz:
<30 dBm (FCC)
<23 dBm (SRRC/MIC)

5.470-5.600 GHz, 5.650-5.725 GHz:
<30 dBm (FCC)
<23 dBm (CE/MIC)

5.725-5.850 GHz:
<33 dBm (FCC/SRRC)
<14 dBm (CE)
Max Bandwidth 40 MHz
Max Bitrate 50 Mbps
Power Consumption Video Transmitter: 11 W
Video Receiver: 11 W
Power Supply Voltage 6 to 18 V
Output Voltage Power output port: 6 to 18 V
Operating Time Video Transmitter: 3 hours 40 minutes[1]
Video Receiver: 3 hours 50 minutes
Input Video Format 3G SDI: YCbCr 4:2:2 10-bit
HDMI RGB 4:4:4
1080p: 23.98/24/25/29.97/30/50/59.94/60fps
1080i: 50/59.94/60fps
720p: 50/59.94/60fps
Output Video Format 3G SDI: YCbCr 4:2:2 10-bit
1080p: 23.98/24/25/29.97/30/50/59.94/60fps
1080i: 50/59.94/60fps
720p: 50/59.94/60fps
Input Audio Format SDI embedded, HDMI embedded
Output Audio Format PCM
Video Transmission System O3 Pro
Max Video Bitrate 50 Mbps
Video Transmission Latency 68 ms[2]
100 ms[3]
Video Coding Format H.264
Max Transmission Distance 6 km (FCC)[4]
4 km (CE/SRRC/MIC)[4]
Operating Temperature -10° to 45° C (14° to 113° F)
Mirror Control Mode Supported Camera Models ZV1/A7 III/A7S III/A7M III/A7R III/A7R IV/A7 IV/FX3/A7S II/A6600/A6400 and all Sony cameras that support BRAVIA (HDMI control).
Notes
1. Measured at room temperature (25° C/77° F) with a fully charged WB37 battery.
2. Measured when shooting 1080p/60fps video.
3. Measured when shooting 1080p/24fps video.
4. In open environments free of obstructions or interference.
