Overview.

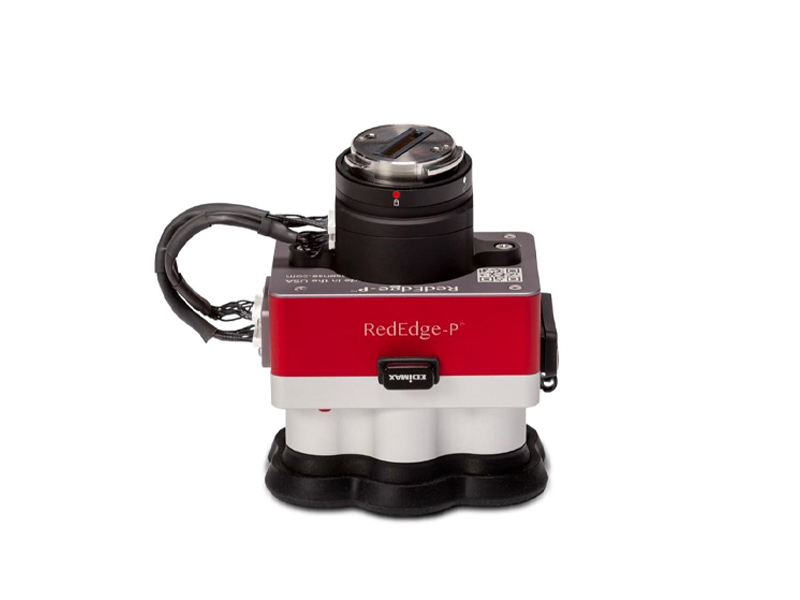

With the RedEdge-P multispectral sensor, you can capture calibrated high-resolution multispectral and RGB imagery with an all-in-one imaging solution. The RedEdge-P delivers twice the ground resolution of RedEdge-MX and with an optimised FOV can achieve pixel-aligned outputs never before possible.

Highlights.

Delivers multispectral and high-resolution RGB data
Easy integration with DJI Skyport
Single-camera imaging solution

Specifications.

Weight: 300g
Dimensions: 8.2 x 6.2 x 5.4 cm
External power: 7 - 25.2 V
Spectral bands: Blue, green, red, red edge, near-IR
Wavelength(blue): 475 nm centre, 32 nm bandwidth
Wavelength(green): 560 nm centre, 27 nm bandwidth
Wavelength(red): 668 nm centre, 14 nm bandwidth
Wavelength(red edge): 717 nm centre, 12 nm bandwidth
Wavelength(near-IR): 842 nm centre, 57 nm bandwidth
RGB output: 5.1 MP
Ground sample distance:
7.7cm per pixel (per MS band) at 120m AGL
3.98cm per pixel (panchromatic band) at 120m AGL
Capture rate: 2-3 captures per second
FOV: 49.6° HFOV x 38.3° VFOV (MS)
44.5° HFOV x 37.7° VFOV (PAN)

In the box.

1 x RedEdge-P Sensor		1 x Mounting Hardware
1 x DLS 2 with embedded GPS		1 x CFexpress card
1 x Calibrated Reflectance Panel		1 x CFexpress card reader
1 x USB Wifi Dongle		1 x Hard Carrying Case
1 x Lens cover		1 x Quick start guide
1 x Integration cables

Compatibility.

DJI M200
DJI M210
