Radar Systems Zond Aero LF GPR
`

Radar Systems Zond Aero LF GPR

Item Code: RADSYS-ZA-LF-GPR

Ground Penetrating Radar

Key Features:
• High End Data Quality with Minimal Noise
• Flexible Frequencies

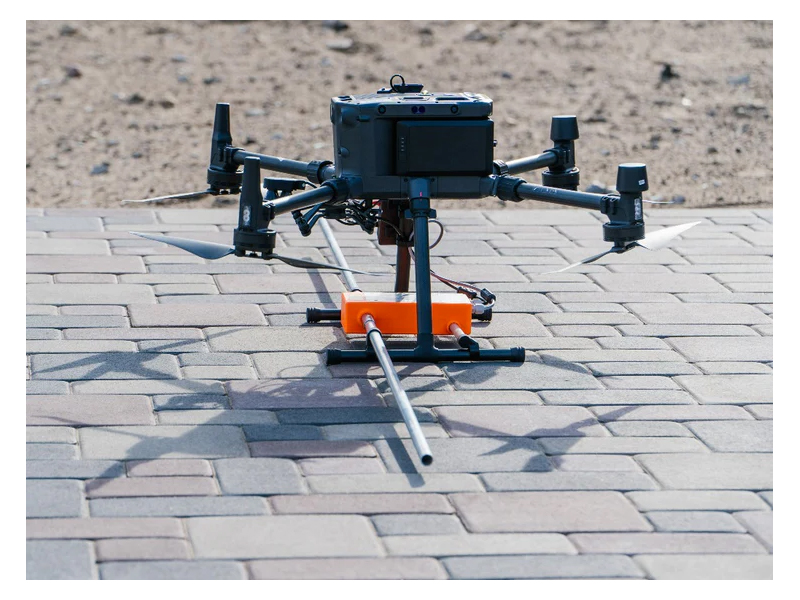

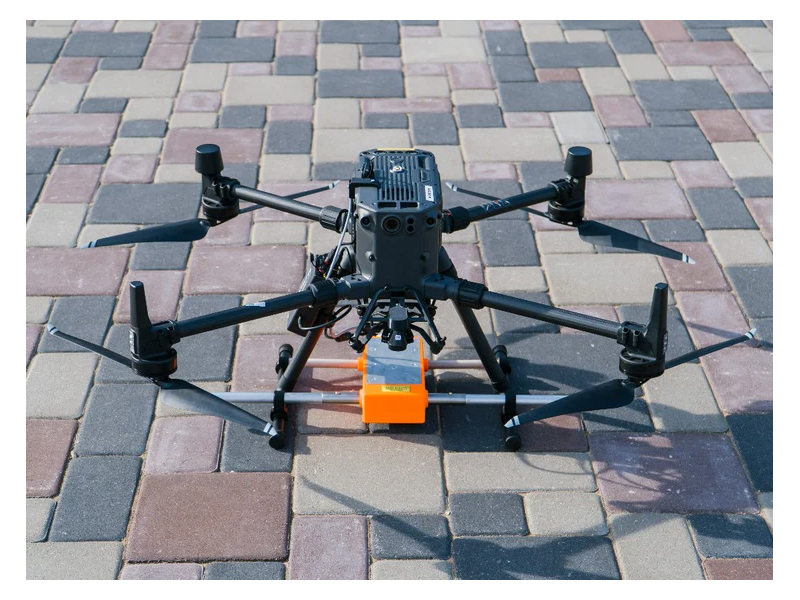

• Compatible with DJI Enterprise Series Drones

Overview

Radar Systems Zond Aero LF GPR is an innovative and extra-lightweight Ground Penetrating Radar (GPR) system tailored for enterprise series drones. Its versatility is unmatched, boasting a wide range of customizable frequencies from 50MHz to 400MHz.

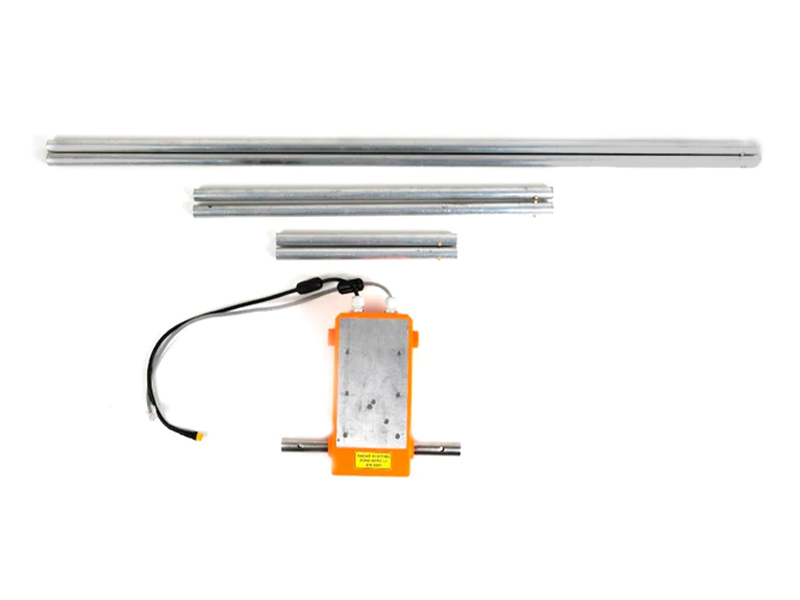

Equipped with three sets of dipoles calibrated at 300MHz, 150MHz, and 100MHz, the Zond Aero LF offers adaptability to various survey requirements. Need a different frequency? No problem. Customize your GPR experience by requesting alternate dipoles or even modifying the supplied ones to suit your needs.

Powered by Real Time Sampling (RTS) technology and high hardware stacking, this system ensures unparalleled data quality with high resolution and minimal noise. Whether you're conducting archaeological surveys, infrastructure inspections, or environmental assessments, the Zond Aero LF delivers precise and reliable results.

Compact, lightweight, and packed with advanced features, the Zond Aero LF is the ultimate choice for professionals seeking efficient and accurate GPR solutions for their drone operations.

Highlights

▪ Real Time Sampling (RTS) technology and high hardware stacking, delivering unparalleled data quality with high resolution and minimal noise.

▪ Unmatched versatility with a wide range of customisable frequencies from 50MHz to 400MHz.

▪ Compact, lightweight, and packed with advanced features.

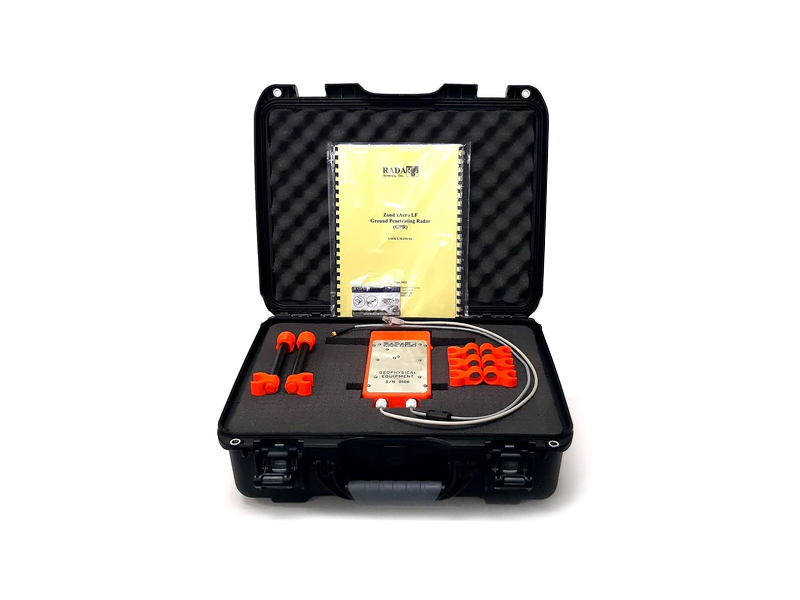

In the Box

1 x Zond Aero LF GPR system
1x Transport Case for GPR Controller
1x Tube for Antennas
1x Mounting kit for DJI M300/M350 RTK drones
1x Prism 2 Data Acquisition/Processing Software

Specifications

Center Frequency: 100, 150, 300 MHz depending on used antenna
Custom frequencies by request (any frequency 50...400 MHz)
Operating Bandwidth: 38 – 150, 75 – 300, 150 – 600 MHz (-12 dB)
Sample rate: Up to 1,280,000 samples/second
Scan rate: Up to 2,500 scans/s
Sample Output: 32 bit Digital Raw Data
Depth: Up to 12 meters in soil with relative dielectric permittivity equal to 5 and specific attenuation up to 5 dB/m.

Compatibility

Matrice 300 RTK
Matrice 350 RTK
