Matrice 600 Pro
`

Matrice 600 Pro

Item Code: M600PRO

The Matrice 600 Pro is the backbone of customer drone solutions. With an extremely versatile payload system, the Matrice 600 Pro can carry your Ronin-MX, Lidar equipment, speakers and more!

Free Shipping
Enquire Now!


Visit - Know Your Drone - for a safe and responsible flight



Aircraft

Diagonal Wheelbase 1133 mm
Dimensions 1668 mm × 1518 mm × 727 mm with propellers, frame arms and GPS mount unfolded (including landing gear)
437 mm × 402 mm × 553 mm with propellers, frame arms and GPS mount folded (excluding landing gear)
Package Dimensions 525 mm × 480 mm × 640 mm
Weight (with six TB47S batteries) 9.5 kg
Weight (with six TB48S batteries) 10 kg
Max Takeoff Weight Recommended 15.5 kg
Hovering Accuracy (P-GPS) Vertical: ±0.5 m, Horizontal: ±1.5 m
Max Angular Velocity Pitch: 300°/s, Yaw: 150°/s
Max Pitch Angle 25°
Max Wind Resistance 8 m/s
Max Ascent Speed 5 m/s
Max Descent Speed 3 m/s
Max Service Ceiling Above Sea Level
  • 2170R propellers: 2500 m；
  • 2195 propellers: 4500 m
Max Speed 40 mph / 65 kph (no wind)

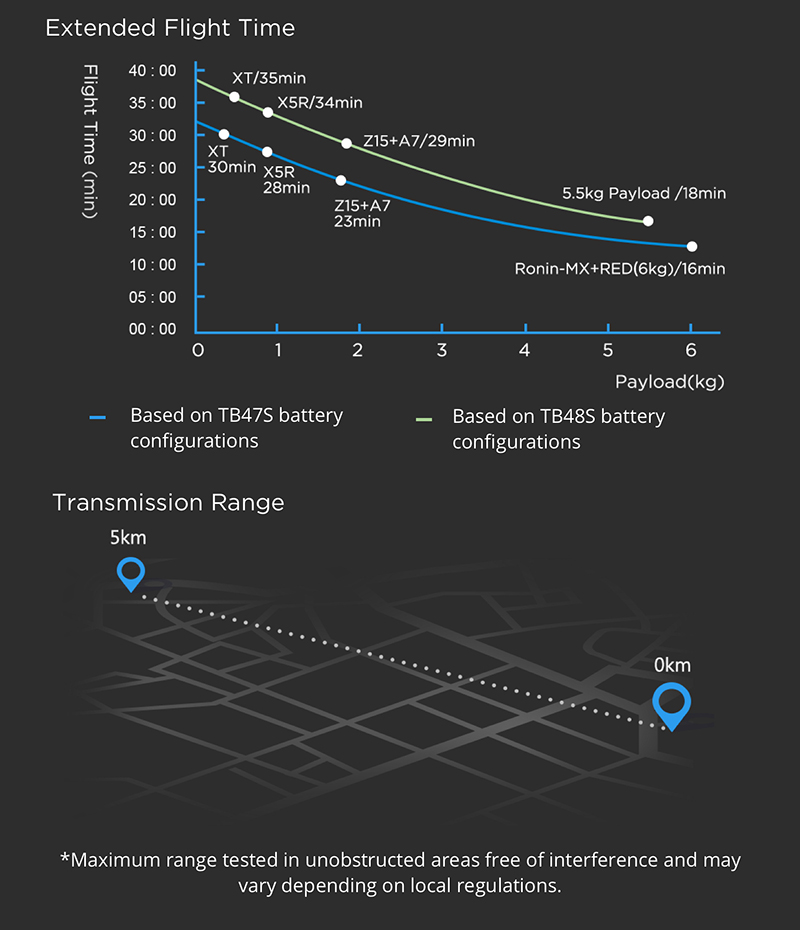

Hovering Time* (with six TB47S batteries) No payload: 32 min, 6 kg payload: 16 min
Hovering Time* (with six TB48S batteries) No payload: 38 min, 5.5 kg payload: 18 min

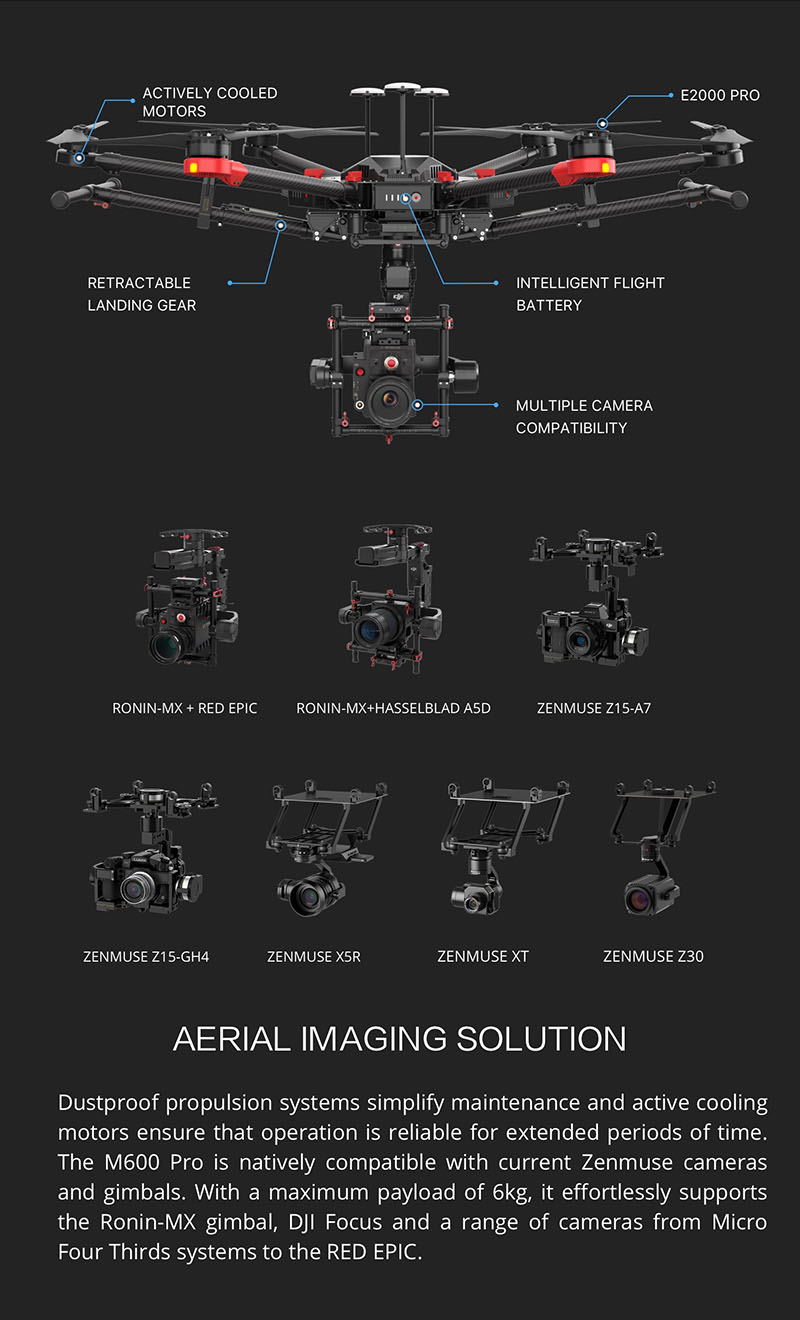

Supported DJI Gimbals Ronin-MX; Zenmuse Z30, Zenmuse X5/X5R, Zenmuse X3, Zenmuse XT; Zenmuse Z15 Series HD Gimbal: Z15-A7, Z15-BMPCC, Z15-5D III, Z15-GH4

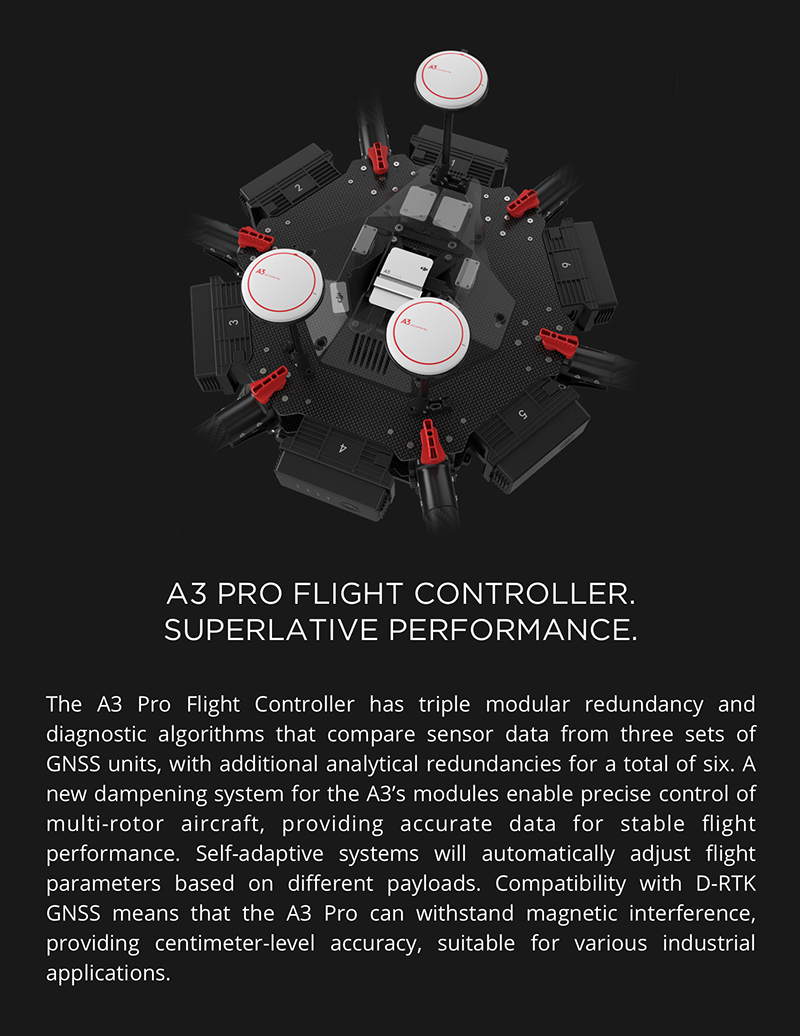

Flight Control System A3 Pro
Propulsion System
  • Motor model: DJI 6010
  • Propeller model: DJI 2170R
Retractable Landing Gear Standard
Operating Temperature 14° Fto 104° F (-10° C to 40° C)

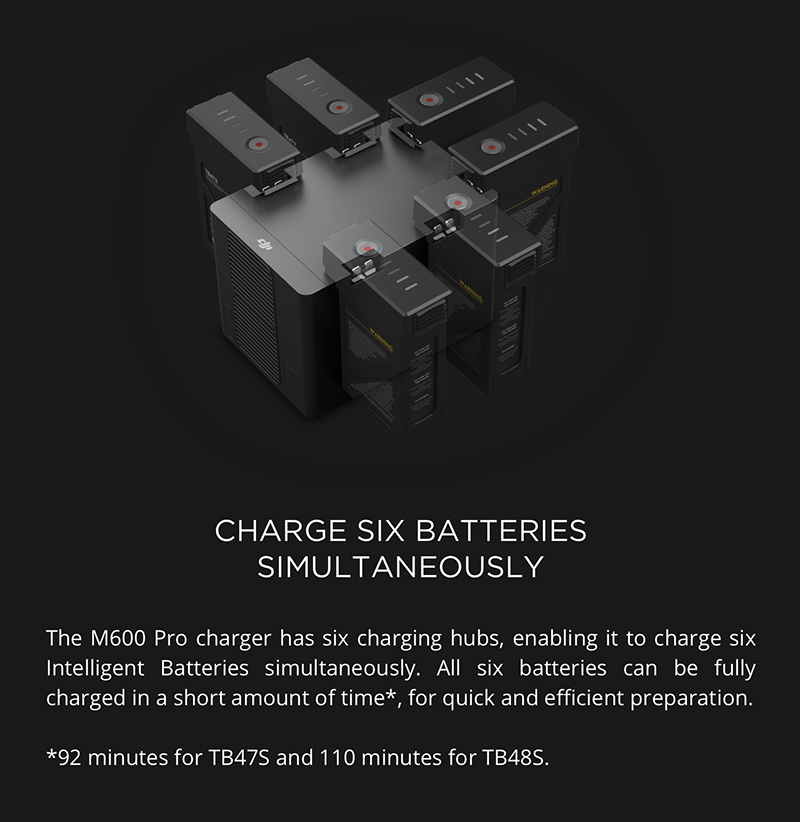

Charger (Model: MC6S600)

Voltage Output 26.1 V
Rated Power 600 W
Single Battery Port Output Power 100 W

Optional Battery (Model: TB48S)

Capacity 5700 mAh
Voltage 22.8 V
Battery Type LiPo 6S
Energy 129.96 Wh
Net Weight 680 g
Operating Temperature 14°F to 104° F (-10°C to 40° C)
Max Charging Power 180 W

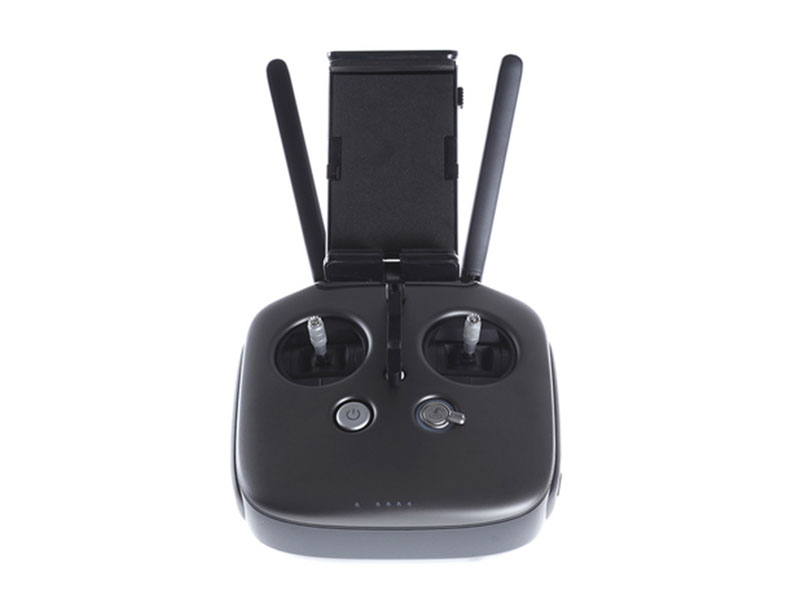

Remote Controller

Operating Frequency 920.6 MHz to 928 MHz (Japan); 5.725 GHz to 5.825 GHz; 2.400 GHz to 2.483 GHz
Max Transmission Distance FCC Compliant: 3.1 mi (5 km), CE Compliant: 2.2 mi (3.5 km) (Unobstructed, free of interference)
Transmitter Power (EIRP) 10 dBm @ 900M, 13 dBm @ 5.8G, 20 dBm @ 2.4G
Video Output Port HDMI, SDI, USB
Operating Temperature 14°F to 104° F (-10° to 40° C)
Battery 6000 mAh LiPo 2S

Standard Battery (Model: TB47S)

Capacity 4500 mAh
Voltage 22.2 V
Battery Type LiPo 6S
Energy 99.9 Wh
Net Weight 595 g
Operating Temperature 14° F to 104° F (-10°C to 40° C)
Max Charging Power 180 W
