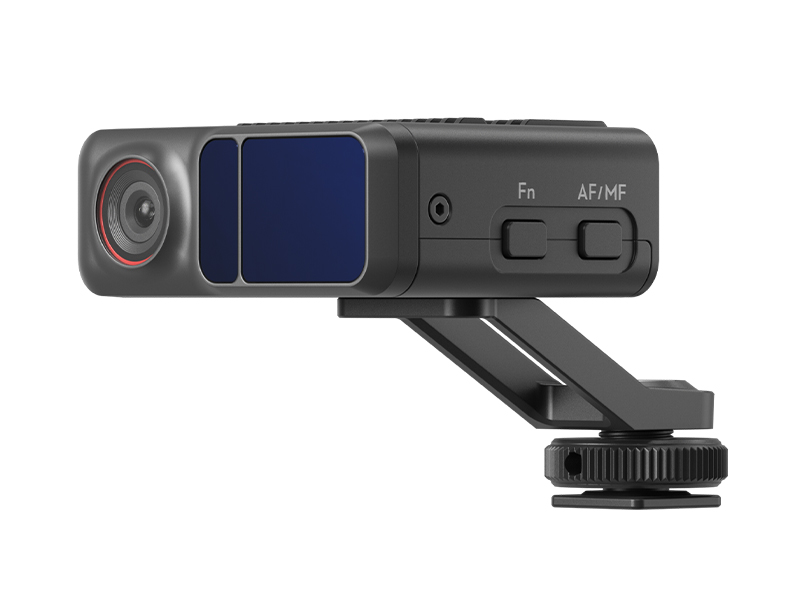

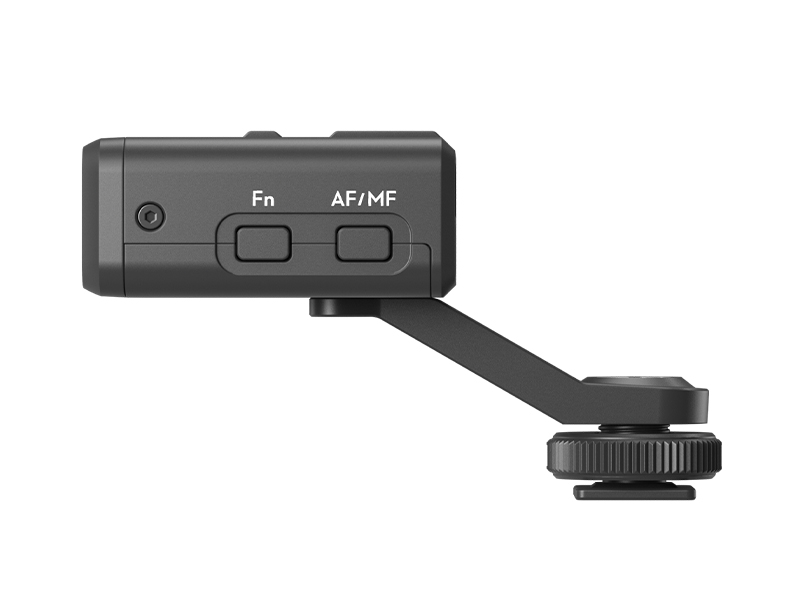

DJI Focus Pro LiDAR
`

DJI Focus Pro LiDAR

Item Code: FOCUSPROP1

Industry-Leading Laser Rangefinder

Key Features:
• Improves Filming Efficiency
• 20m Operating Range

AUD $879.00

Buy Now

Overview

Part of the Focus Pro ecosystem, DJI Focus Pro LiDAR boasts 76,800 ranging points, sharpening human edge detection while effectively reducing focus hunting. A refresh rate of 30Hz provides subject information collection and ensures confident focusing on moving subjects. Pair the Focus Pro LiDAR with DJI RS series for industry-leading autofocus results.

Highlights

▪ Compatible with other DJI Focus Pro ecosystem modules

▪ 76,800 ranging points for enhanced focus

▪ Super wide 70° field of view

In the Box

1 x DJI Focus Pro LiDAR
1 x Multi-Camera Control Cable (USB-C)

Specifications


Compatibility

DJI RS 4 Pro
DJI RS 3 Pro
DJI Focus Pro Grip

Explore the DJI Focus Pro System

Shop Now >

Shop with Confidence

Australia's First & Only Authorised DJI Retail Store

Shop with Confidence | D1 Store
Accessory Port Cold Shoe
1/4"-20 Threaded Hole
USB-C Firmware Update Port (Power/USB)
USB-C Data Port (Power/CVBS/CAN)
Image Sensor Resolution: 1920×1440
FOV:
‌57.4° (horizontal), 44.6° (vertical), 70.1° (diagonal)
Frame Rate: 30fps
Equivalent Focal Length: 30 mm
ToF Sensor Ranging Points: 76,800
Sensing Range: 0.5-20 m
FOV:
Wide-Angle Mode: 65° (horizontal), 40° (vertical), 76.1° (diagonal)
Telephoto Mode: 20° (horizontal), 20° (vertical), 28.3° (diagonal)
Frame Rate: 30fps
Equivalent Focal Length: 30 mm (wide-angle mode)
Ranging Accuracy: ±1% to 3% (affected by the distance)
Machine Learning Tracking Subject: Can recognize up to five subjects at the same time, and choose one to follow
Smart Object Identification: Human, vehicle
Focus Area: Flex Spot (activate focus lock by framing the subject and pressing the trigger; supports autofocus only, not ActiveTrack); Wide (when subject-locked on human, supports both autofocus and ActiveTrack*; when subject-locked on vehicle, supports autofocus only, not ActiveTrack)

* ActiveTrack is available only when used in conjunction with DJI RS 4 Pro or DJI RS 3 Pro.‌
Electrical Properties ‌Power Consumption: Average approx. 6.3 W, max 6.8 W
Input Voltage: 6.6-17.2 V
Operating Temperature -20° to 45° C (-4° to 113° F)
Mechanical Properties Main Body Dimensions: Approx. 68×25×57 mm (L×W×H)
Weight: Approx. 140 g (0.31 lbs)
Mounting Method and Position Can be mounted directly via cold shoe or using the 1/4" threaded hole

It is recommended to mount the DJI Focus Pro LiDAR close to the camera's optical axis.
