DJI U10 UAV Based Laser Methane Leakage Detector
`

DJI U10 UAV Based Laser Methane Leakage Detector

Item Code: DJI-U10

Built for DJI Matrice 200 Series
Powered by DJI Skyport SDK

CH4 Detection
100m Detection Range
25ms Response Time


Contact enterprise@d1store.com.au for Pricing & Availability

DJI U10 UAV Based Laser Methane Leakage Detector

Overview

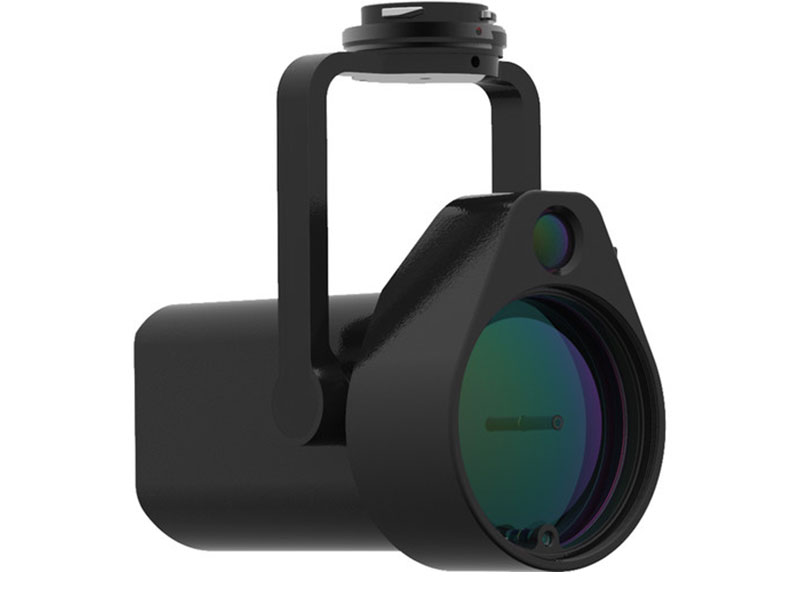

Powered by DJI SkyPort, the U10 UAV Based Laser Methane Leakage Detector makes methane detection operations safe, easy and efficient. The U10 utilises Tunable Diode LaserAbsorption Spectroscopy (TDLAS) technology to provide accurate real-time readings from up to 100 metres away with a rapid response time of just 25 ms.

Highlights

▪ Built-in HD camera provides accessible visuals of leakage and detection sites

▪ Adjustable gimbal design enables pitch adjustment for accurate, pinpoint readings

▪ Powerful workflow automations including flight planning and data reporting via the a-ONE app

In the Box

1 x U10 UAV Based Laser Methane Leakage Detector

Specifications

Dimensions: 155 x 90 x 100 mm
Weight: 534 g
Detection Method: TDLAS
Stationary Detection Limit: 5 ppm·m
Response Time: 25 ms
Sampling Rate: 500 KHz
Detection Concentration Rate: 0~50,000 ppm·m
Operating Temperature: -20 ~ 50°C

Compatibility

Matrice 200 Series
