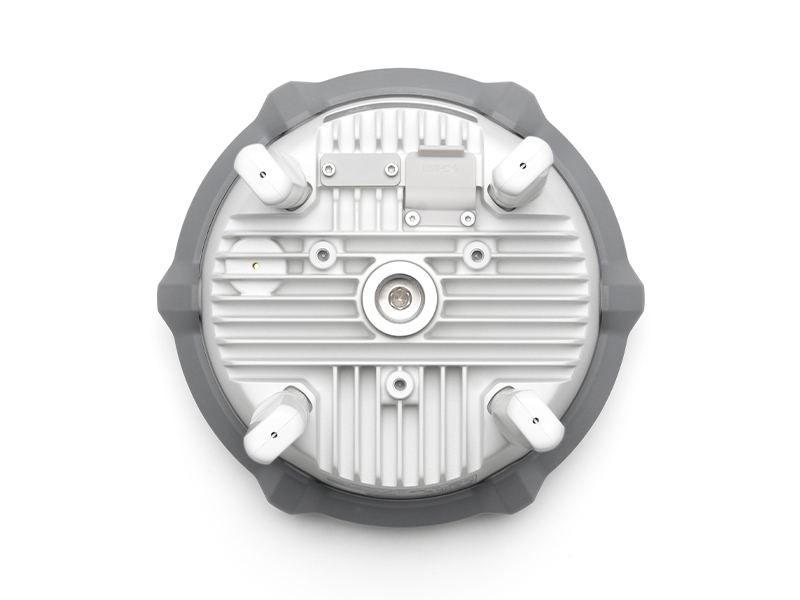

D-RTK 3 Multifunctional Station
D-RTK 3 Multifunctional Station
SKU: D-RTK3 | EAN: 6937224104792
Regular price
$2,320.00
Sale price
$2,320.00
Regular price
Includes FREE Standard Shipping
Taxes included.
Shipping calculated at checkout.
Notify me when available
We’ll email you when this item is back in stock.
Need help now?
Couldn't load pickup availability
Dispatch
Ships from D1 Retail Store
Within 24 Business Hours
Estimated Delivery
Enter postcode for estimate
Why Buy from D1 Store Try It In Store Same-Day Care Refresh Claims 70% Faster Repairs Up to 2 Years Warranty Price Match Guarantee DJI Specialists in Store
- Try It In Store Try it with a D1 Product Specialist. Same-day pickup when in stock.
- Same-Day Care Refresh Claims Buy it here and claim in-store the same day, instead of waiting 2–3 weeks.
- 70% Faster Repairs About 70% faster than the usual 2–3 week turnaround. Assessment is free.
- Up to 2 Years Warranty Products purchased from D1 Store include up to 2 years warranty*
- Price Match Guarantee Submit a price match and we match Authorised Australian Retail with the Best Price.
- DJI Specialists in Store Stores, D1 Product Specialists, and an in-house repair desk.
High-Precision Positioning and Relay System
Maximised Precision, Enhanced Range
Versatile Control
The D-RTK 3 Multifunctional Station combines advanced antennas and receiver modules to deliver exceptional performance, capable of tracking and processing data from all major global satellite navigation systems. With support for multiple data transmission links, it can precisely calculate device position and orientation using its built-in, high-performance inertial measurement unit.
- Multiple versatile operating modes to match your needs
- Wide, multi-generation DJI drone compatibility
- Extensive software support via DJI Enterprise & DJI Terra
Break Through Limitations
D-RTK 3 utilizes DJI's proprietary PPP solution, supporting integrated satellite-based augmentation and differential corrections from BeiDou B2b and Galileo HAS. This enables decimeter-level positioning even in challenging network conditions.
One Station, Multiple Drones
D-RTK 3 supports the new O4 Enterprise video transmission system. Equipped with four external directional antennas, it achieves a maximum RTK coverage range of 40 km in base station mode while ensuring stable signals in all directions. Operators only need to set up one D-RTK 3 Multifunctional Station without additional configuration, allowing multiple drones to connect to the base station and access centimeter-level positioning.
Flexible & Efficient

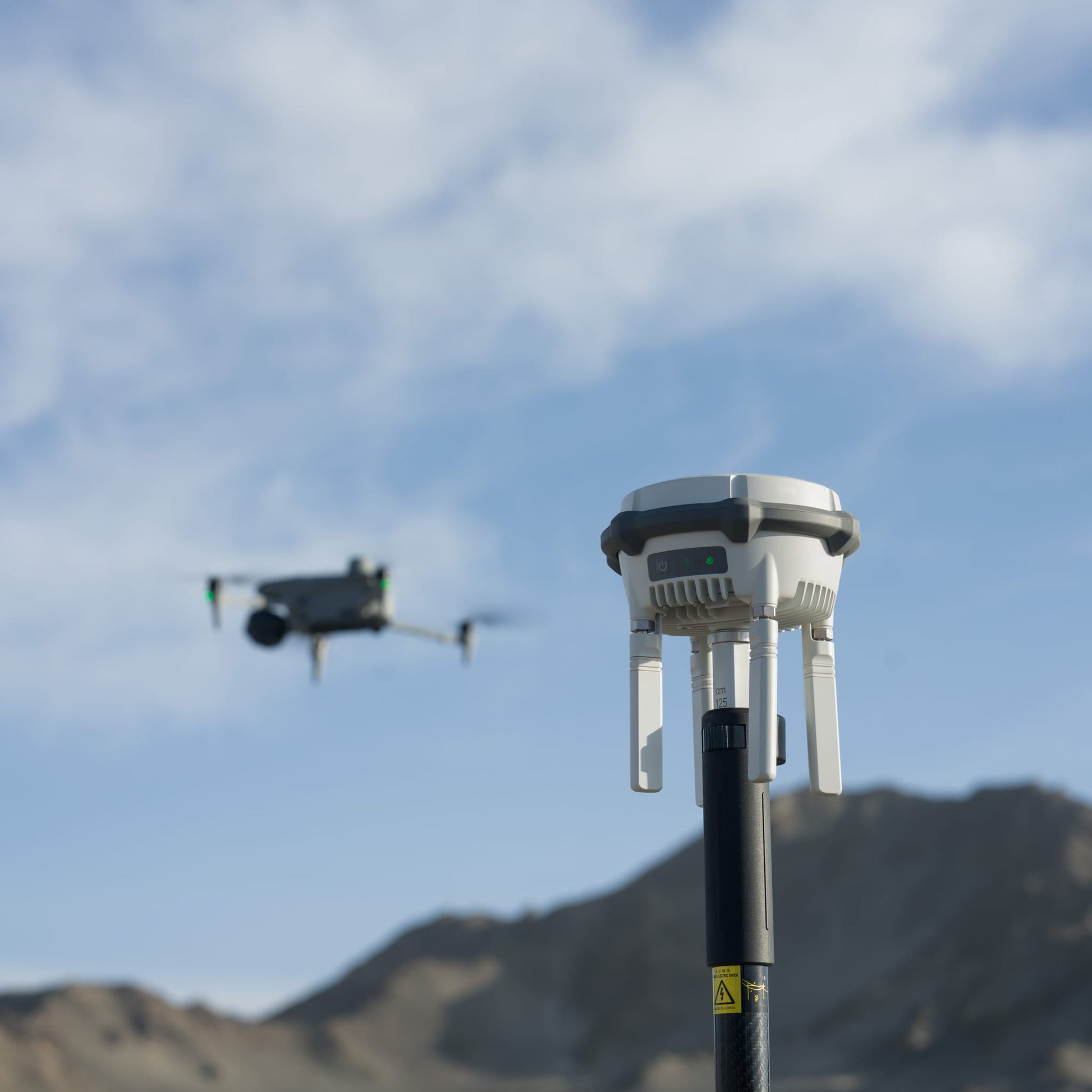

Besides serving as a base station, D-RTK 3 can also be used as a rover station to collect control point coordinates, enhancing the accuracy of UAV aerial survey and improving survey precision.
Accurate Positioning
D-RTK 3 uses an air dielectric antenna with a filtering design, effectively tracking low-elevation satellites. The antenna phase-center accuracy is maintained within millimeter level, ensuring strong resistance to multipath interference and enabling high-precision positioning even in complex environments.
With its built-in receiver module, D-RTK 3 can receive satellite data from five major satellite systems across nineteen frequency points. Compared to network RTK, D-RTK 3 provides more accurate and stable positioning results under ionospheric effects.
Standalone Precise Point Positioning (PPP)
D-RTK 3 utilizes DJI's proprietary PPP solution, supporting integrated satellite-based augmentation and differential corrections from BeiDou B2b and Galileo HAS. This enables decimeter-level positioning even in challenging network conditions.
Network High-Precision Calibration
D-RTK 3 can receive RTCM data and automatically obtain coordinates and correct positions through the network. When used outdoors, it can achieve centimeter-level precision positioning without pre-measuring the setup point location.
Integrated Mapping Solution
Perform mapping operations via easy integrations with DJI Enterprise and DJI Terra.
Ground Control Point Setup
D-RTK 3 has a built-in high-precision inertial measurement unit, allowing the control point to be measured when the pole is held at an angle without a tripod or ensuring the base station is vertical, significantly improving operational efficiency in complex measurement environments.
Projection Coordinate Conversion
The new DJI Enterprise app includes a mainstream projection coordinate database, allowing direct output of planar coordinates.
Efficient Data Processing
Rover measurement results can be exported as control point files via the DJI Enterprise app and imported into DJI Terra without the need for additional format adjustments. With powerful algorithms, high-precision results can be easily generated.
Local PPK
D-RTK 3 supports recording raw satellite observations. When imported into DJI Terra version 4.4 or above along with data from the Matrice 4E, local PPK calculations can be performed with one click.
Get a Quote
For a product demo or trial, leave your contact details. D1 Enterprise can help specify the right kit.
In the Box
- 1 x D-RTK 3 Multifunctional Station
- 4 x OcuSync Directional Antennas
- 1 x USB-A to USB-C Cable
